Lightweight. Aerodynamic. Race-Ready.

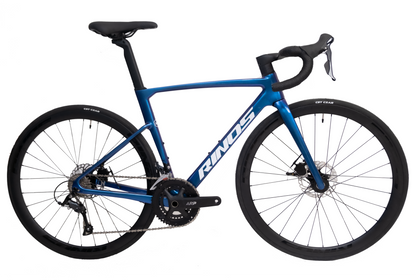

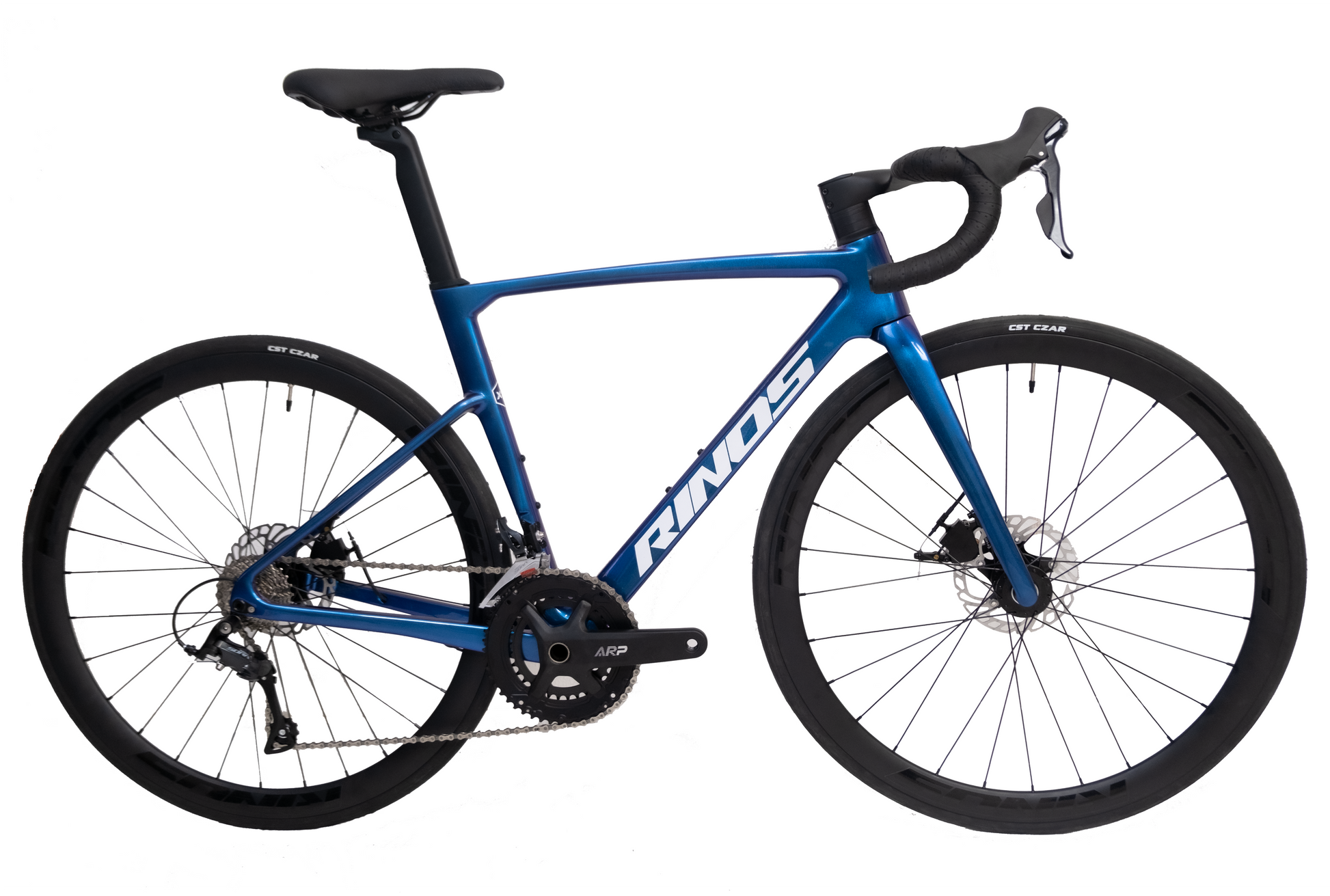

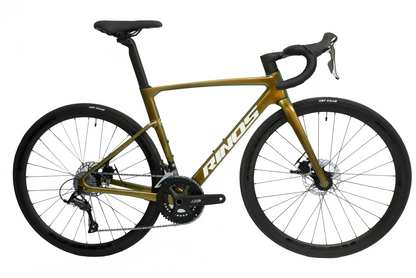

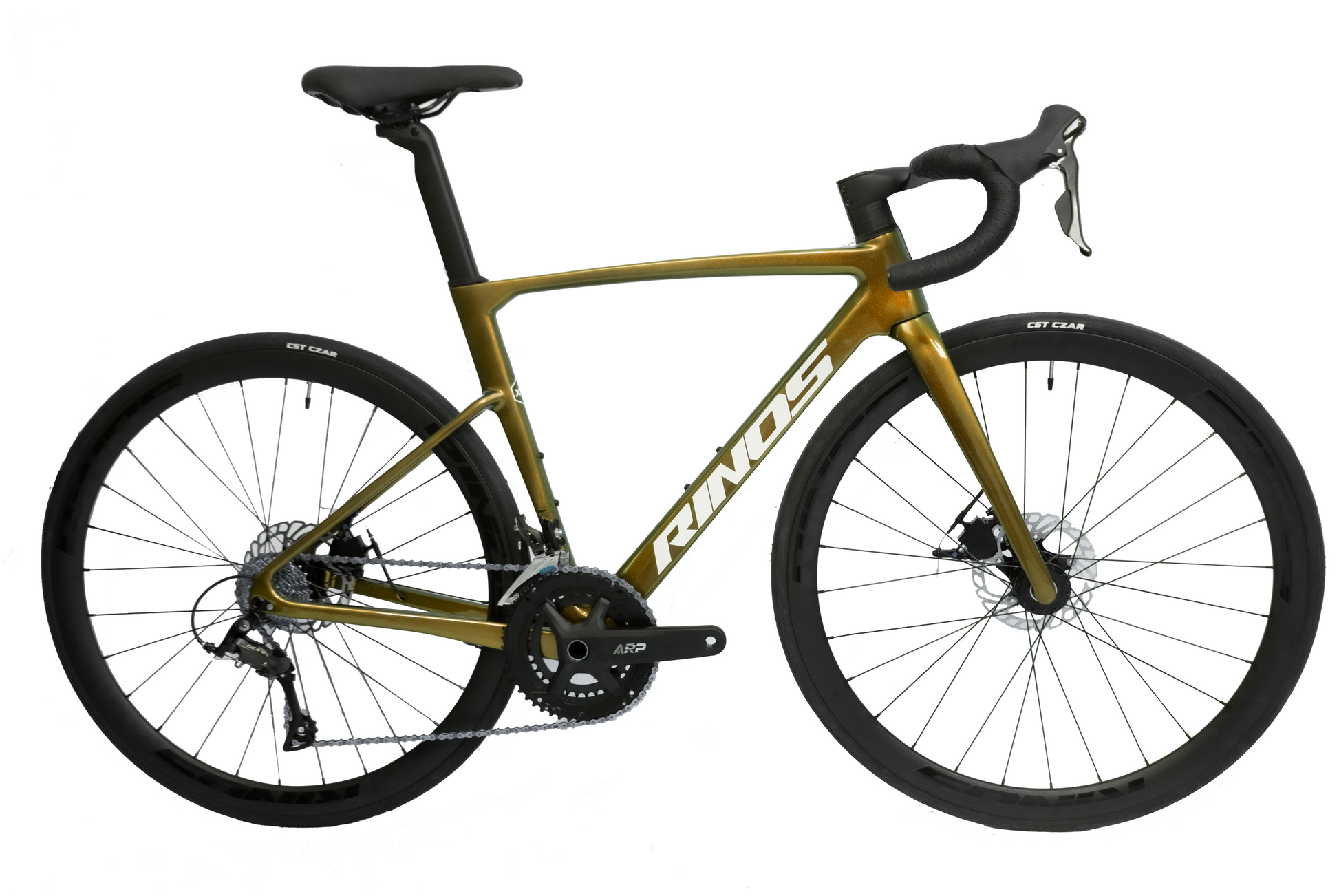

The RINOS Odin 1 is built around a UCI-certified Toray T800 carbon frame with matching carbon fork and seatpost. At just 8.8 kg and equipped with Shimano Sora R3000 2×9, it’s made for ambitious riders, long-distance tours, training sessions and first races – without the usual carbon price tag.
The latest-generation RINOS carbon frame is UCI-certified, meeting the strictest international frame standards. Made from Japanese Toray T800 carbon, it offers a powerful mix of stiffness, comfort and low weight.
Frame, fork and seatpost are all Toray T800 carbon. The frame weighs just 1100 g, the fork about 400 g and the seatpost around 135 g – helping you ride further with less fatigue.
The Shimano Sora R3000 groupset is designed for sporty leisure and training riders. With technology borrowed from higher-tier groups, it delivers reliable shifting for everyday rides and demanding road sessions.
Aerodynamic tube profiles, high-profile 40 mm rims and a flattened handlebar help you cut through the wind. Internal cable routing protects cables from dirt and keeps the bike looking clean and professional.
Thanks to the lightweight carbon construction and carefully selected aluminium components, Odin 1 reaches an impressive 8.8 kg total weight – quick on climbs, stable on descents.
No dealer markups, no unnecessary extras. Odin 1 delivers UCI-certified frame quality and full carbon performance at a price that makes upgrading from aluminium easier than ever.
Available in XS, S, M, L, XL, covering riders from 156 cm to 200 cm.
| Frame Size | Recommended Rider Height |
|---|---|
| XS | 156–165 cm |
| S | 166–174 cm |
| M | 175–184 cm |
| L | 185–193 cm |
| XL | 194–200 cm |
Not sure which size to choose? Contact us with your height and inseam, and we’ll help you pick the perfect size. If the size doesn’t fit, we offer easy exchanges.
| Model: | Odin1.0 |
| Manufacturer: | Rinos |
| Colour: | Gold/Blue |
| Wheel size: | 28 inch (700c) |
| Frame size: | XS/S/M/L/XL |
| User height for XS: | 156–165 cm |
| User height for S: | 166–174 cm |
| User height for M: | 175–184 cm |
| User height for L: | 185–193 cm |
| User height for XL: | 194–200 cm |
| Product weight: | 8.8 kg |
| Shipping weight: | 13.8 kg |
| Frame: | Rinos, Toray T800 Carbon (UCI-certified frame) |
| Fork: | Rinos, Toray T800 Carbon |
| Handlebar: | Rinos, Carbon, 400–420 × 28.6 mm |
| Headset: | Rinos, Alu, 1-1/2" 28.6 × 52 × 52 × 28.6 mm |
| Seatpost: | Rinos, 380 mm Carbon |
| Saddle: | Rinos |
| Gearing: | Shimano SORA ST-R3000, 18 speed (2×9) |
| Derailleur: | Shimano SORA R3000 |
| Brakes: | Disc brakes |
| Cassette: | 11–32T |
| Crankset: | 50/34T × 170, 9-speed compatible |
| Chain: | KMC |
| Pedals: | — |
| Wheels: | Rinos, 28" 700C × 28H × 14G, 38 mm |
| Rims: | Alu 700C × 14G × 28H F/V, 14 × 38 mm |
| Hub: | Novatec 28H × 14G |
| Tyres: | CST 700 × 25C |
| Accessories: | Tools, operating instructions |
| Size | A | B | C | D | E | F | G | H | I | J | K | WB | FL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 420 | 511 | - | - | 74.5° | 70° | 588 | 110 | - | 362 | 537 | 1002 | - |
| S | 450 | 522 | - | - | 75.25° | 70.75° | 591 | 130 | - | 364 | 560 | 1005 | - |
| M | 480 | 539 | -75 | 425 | 74° | 71° | 604 | 150 | 50 | 373 | 579 | 1018 | 400 |
| L | 500 | 556 | - | - | 73.75° | 71.25° | 616 | 170 | - | 381 | 600 | 1030 | - |
| XL | 520 | 573 | - | - | 72.5° | 71.25° | 631 | 190 | - | 389 | 620 | 1045 | - |
All measurements in millimeters (mm). Angles in degrees (°). Missing values indicate shared or equivalent dimensions.
Yes – the Toray T800 carbon frame is UCI-certified and manufactured in a facility producing for multiple international brands.
Most EU orders ship within 2–3 business days and arrive within 5–7 days, depending on the destination country.
2-year warranty on frame, fork and carbon components for manufacturing defects. Normal wear items (tyres, brake pads, cables) are excluded.
The bike arrives about 95% assembled. You attach the front wheel, handlebar and pedals, then adjust the brakes. Most riders complete this in 10–15 minutes. Video instructions are available.
Need professional assembly? Contact us if you’d like the bike fully assembled for collection.
Assembly video:
