Rinos Odin Road series

2-Year Frame Warranty • Lifetime Customer Support • Direct to Consumer - No Middlemen • 95% Pre-Assembled • 2-Year Frame Warranty • Lifetime Customer Support • Direct to Consumer - No Middlemen • 95% Pre-Assembled •

Why Choose Rinos

UCI Certified

Official UCI certified frame for competitive racing

2-Year Warranty

Comprehensive coverage on all components

Free EU Shipping

Fast and free delivery across Europe

German Engineering

Precision-crafted frames designed in Germany

Compare Models

ODIN 1

ODIN 1

Perfect for beginners and casual riders.

Weight 8.8kg
Gear Shimano SORA
Gears 18
Frame TORAY T800 Carbon
Frame Size optimized for riders between 165-195 cm
Brakes Mechanical
Wheel Size 28 inches
Rims Aluminum
BUY
ODIN 3

ODIN 3

Ideal for intermediate riders.

Weight 8.8kg
Gear Shimano 105
Gears 22
Frame TORAY T800 Carbon
Frame Size optimized for riders between 165-195 cm
Brakes Mechanical
Wheel Size 28 inches
Rims Aluminum
BUY
RECOMMENDED
ODIN 4

ODIN 4

Our top pick for serious enthusiasts.

Weight 8.8 kg
Gear Shimano 105
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 165-195 cm
Brakes Shimano 105 hydraulic
Wheel Size 28 inches
Rims Aluminum
BUY
ODIN 6.0

ODIN 6.0

Great for adventurers.

Weight 8.8kg
Gear Shimano 105 Di2
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 156–199 cm
Brakes Hydraulic Disc
Wheel Size 28 inches
Rims Aluminium
BUY
ODIN 6.1

ODIN 6.1

Perfect for long-distance riders.

Weight 7.8kg
Gear Shimano 105 Di2
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 156–199 cm
Brakes Hydraulic Disc
Wheel Size 28 inches
Rims Carbon
BUY
ODIN 7.1

ODIN 7.1

The ultimate choice for professionals.

Weight 7.6kg
Gear Shimano Ultegra Di2
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 156–199 cm
Brakes Hydraulic Disc
Wheel Size 28 inches
Rims Carbon
BUY

Swipe or use arrows to compare

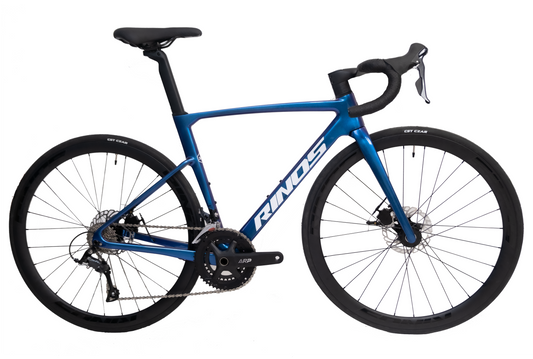

Odin 1 - Translation missing: en.bikes.odin1.alt_text

Odin 1

Weight 8.8kg
Gear Shimano SORA
Gears 18
Frame TORAY T800 Carbon
Frame Size optimized for riders between 165-195 cm
Brakes Mechanical
Wheel Size 28 inches
Rims Aluminum

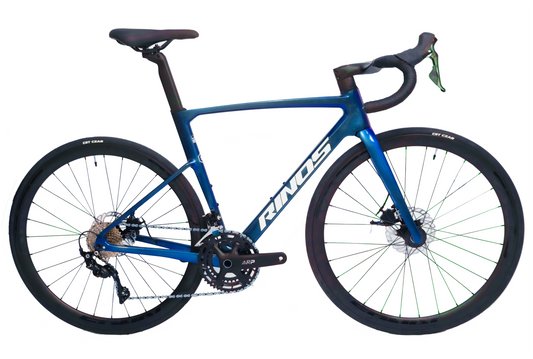

Odin 3 - Translation missing: en.bikes.odin3.alt_text

Odin 3

Weight 8.8kg
Gear Shimano 105
Gears 22
Frame TORAY T800 Carbon
Frame Size optimized for riders between 165-195 cm
Brakes Mechanical
Wheel Size 28 inches
Rims Aluminum

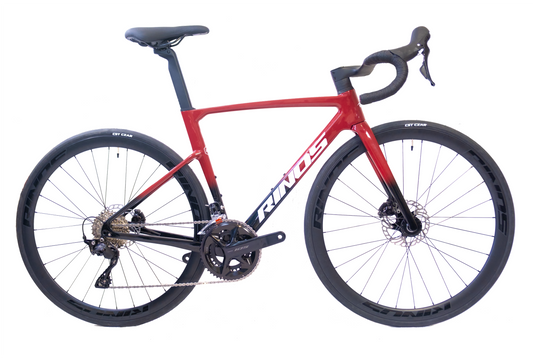

odin 4 - Translation missing: en.bikes.odin4.alt_text

odin 4

Weight 8.8 kg
Gear Shimano 105
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 165-195 cm
Brakes Shimano 105 hydraulic
Wheel Size 28 inches
Rims Aluminum

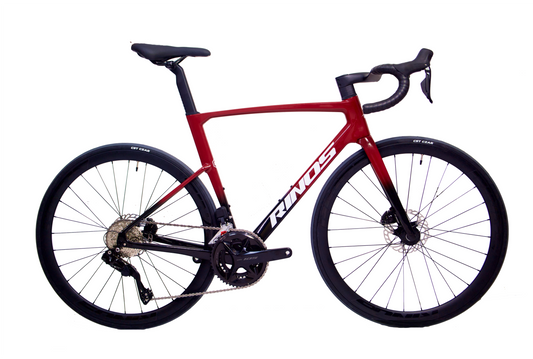

Odin 6.0 - Translation missing: en.bikes.odin6_0.alt_text

Odin 6.0

Weight 8.8kg
Gear Shimano 105 Di2
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 156–199 cm
Brakes Hydraulic Disc
Wheel Size 28 inches
Rims Aluminium
Odin 6.1 - Translation missing: en.bikes.odin6_1.alt_text

Odin 6.1

Weight 7.8kg
Gear Shimano 105 Di2
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 156–199 cm
Brakes Hydraulic Disc
Wheel Size 28 inches
Rims Carbon
Odin 7.1 - Translation missing: en.bikes.odin7_1.alt_text

Odin 7.1

Weight 7.6kg
Gear Shimano Ultegra Di2
Gears 24
Frame TORAY T800 Carbon
Frame Size optimized for riders between 156–199 cm
Brakes Hydraulic Disc
Wheel Size 28 inches
Rims Carbon

Rinos x TRUDI

Better wheels, same fair price. We just added Berd's TRUDI system to our workshop—not to charge you more, but to deliver pro-level wheel builds on every bike.

Discover the Full Blog

Find Your Perfect Fit

Choose based on your height. Between sizes? Go larger for comfort, smaller for agility.

XS
152-165 cm
5'0" - 5'5"
S
166-172 cm
5'5" - 5'8"
M
175-184 cm
5'9" - 6'0"
L
185-193 cm
6'1" - 6'4"
XL
194-200 cm
6'5" - 6'7"
Not sure about your size?

Contact our team for personalized sizing advice. We offer free size exchanges.

Get Sizing Help
📏 Sizing Guide & Geometry +

How to Measure Yourself

1 Stand Against a Wall: Remove your shoes and stand with your back flat against a wall.
2 Mark Your Height: Use a book on top of your head, parallel to the floor. Mark the wall.
3 Measure: Measure from the floor to your mark. This is your height for sizing.

💡 Tip: Between sizes with longer legs? Size up. Shorter torso? Size down.

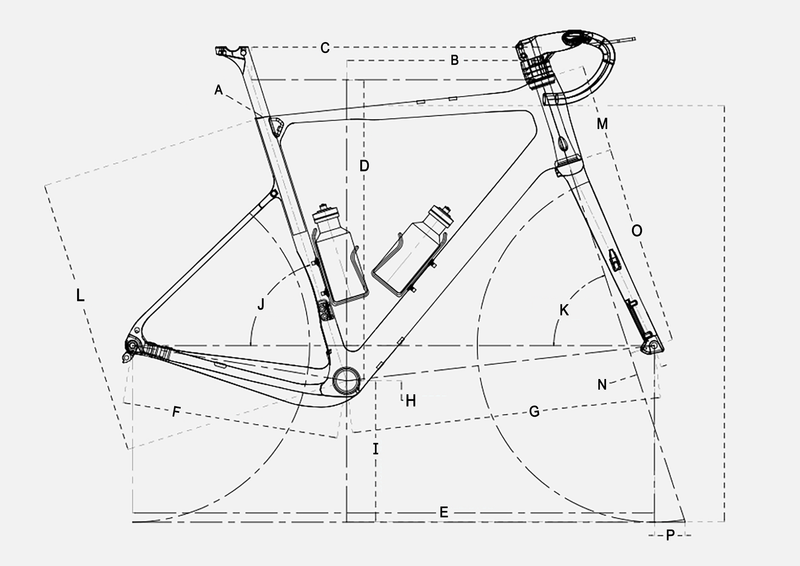

Frame Geometry

Frame Geometry
Measurement XS S M L XL
Rider Height 152-165cm 166-172cm 175-184cm 185-193cm 194-200cm
Frame Size (A)460mm490mm520mm540mm560mm
Reach (C)371mm385mm391mm391mm396mm
Stack (E)503mm505mm521mm542mm563mm
Top Tube (D)510mm525mm540mm550mm565mm
Head Tube (N)105mm108mm121mm141mm161mm
Seat Tube (M)460mm480mm500mm522mm542mm
Standover734mm754mm772mm793mm813mm
Wheelbase (F)971mm987mm989mm991mm998mm
Chainstay (G)410mm410mm410mm410mm410mm
BB Drop (I)70mm70mm70mm70mm70mm
Seat Angle (K)74.5°74.5°74°73.6°73.3°
Head Angle (L)71°71°72°72.5°73°

All measurements are approximate.
