Hydraulic vs Mechanical Disc Brakes – Ultimate 2025 Buyer’s Guide
Power • Service • Price – find the right Shimano brake system for your Rinos ride.
Welcome to our guide! Whether you’re hunting Google for hydraulic vs mechanical disc brakes, Shimano brake maintenance, or how to bleed Shimano GRX brakes, this all‑in‑one guide has you covered. We’ll compare braking power, weight, maintenance costs, and show which Shimano groupsets sits on each 2025 Rinos model.
For your guidance in managing your breaking system, we will present: a troubleshooting table, a six‑step installation walkthrough and a keyword explanations. These guides and steps will help you enhance your optimal bike riding and smooth performance.
Hydraulic vs Mechanical – Pros & Cons
| Hydraulic Disc Brakes | Mechanical Disc Brakes | |
|---|---|---|
| Peak stopping power | Top‑tier breaking, smooth modulation | Strong but higher lever effort is needed |
| Maintenance cycle | Bleed every 6‑12 mo (how to bleed Shimano brakes) | Replace cable & housing yearly |
| Weather resilience | Sealed fluid circuit resists grit & ice | Cable friction increases when dirty or with residue |
| Trailside repairability | Complex if hose damaged | Spare cable: with the biker's tools - 5‑min fix |
| System weight | ≈ 80 g lighter (no steel cable) | Slightly heavier—but minimal change |
| Cost on Rinos builds | +€120–€180 vs mechanical | Best value for money |
Disc Brake Troubleshooting – 6 Common Issues
Use this quick‑reference table—rich in search terms like rotor rub, spongy Shimano lever, and brake squeal—to solve headaches before they ruin your ride.
| Issue | Likely Cause | Hydraulic Fix | Mechanical Fix |
|---|---|---|---|
| Rotor rub / metallic noise | Caliper off‑centre or bent rotor | Loosen bolts, squeeze lever, re‑tighten; true rotor with rotor‑truing tool | Same centring; also adjust barrel tension |
| Spongy lever feel | Air in fluid / old mineral oil | Full bleed with Shimano funnel; top up oil | Replace stretched cable & lube housing |
| Weak braking power | Glazed or contaminated pads | Sand pads, clean rotor, re‑bed | Install new pads; ensure lever pulls fully |
| Loud brake squeal | Oil or degreaser contamination | Flame or replace pads; scrub rotor with IPA | Identical procedure |
| Lever hits bar | Severe air ingress / cable stretch | Emergency top‑up bleed on trail | Wind barrel out; replace cable ASAP |
| Rotor warps on descent | Heat build‑up on long braking | Upgrade to ICE‑Tech or larger rotor | Fit larger/vented rotor; reduce drag |
Rinosbike 2025 Brake Specification Matrix
| Bike Model | Brake Group | Rotor Stock | Ideal Terrain & Use |
|---|---|---|---|
| ODIN 1 | Shimano Cable Disc BR‑RXC | 160 mm F/R | Budget commuting, world touring |
| GAIA 4 | Shimano SLX M7100 | 160 mm F / 180 mm R | Loaded gravel, bike‑packing mountains |
| ODIN 4 | Shimano 105 R7170 | 160 mm F / 140 mm R | Fast road, light gravel, club rides |
| SANDMAN 4 | Shimano GRX RX400 | 160 mm F/R | Weekend mixed‑terrain fitness |
| SANDMAN 6 | GRX RX400 caliper + RX600 lever | 160 mm F/R | All‑road racing, endurance gravel |
| SANDMAN 7 | Shimano GRX RX820 | 160 mm ICE‑Tech | Performance gravel, marathon events |
Which Brake‑Bike Combo Matches You?
| Rider Persona | Recommended Model | Why It Wins |
|---|---|---|
| Urban Budgeteer | ODIN 1 (Mechanical) | Low cost, simple cable service, no bleed kit needed |
| Adventure Bike‑Packer | GAIA 4 (Hydraulic SLX) | Extra rear rotor size prevents fade under heavy loads |
| Weekend Road Sprinter | ODIN 4 (Hydraulic 105) | Feather‑light lever, compact 140 mm rear rotor saves weight |
| Gravel Race Junkie | SANDMAN 7 (Hydraulic RX820) | Latest GRX pistons, ICE rotors keep cool in long descents |
Install / Service Your Brakes – 6 Steps
Follow the matching column below. Bookmark this guide for disc brake installation or Shimano brake service searches later.
| Step | Hydraulic | Mechanical |
|---|---|---|
| 1. Prep | Remove wheels, bag rotors, gather bleed kit | Remove wheels, grab cable cutters |
| 2. Mount caliper | Bolt & torque 6 Nm | Same torque spec |
| 3. Route line | Measure hose, cut, install olive & barb | Thread inner cable through housing |
| 4. Bleed / tension | Bleed with funnel until bubble‑free | Pull cable snug, set barrel adjuster |
| 5. Align caliper | Squeeze lever, tighten bolts evenly | Same alignment trick |
| 6. Bed‑in pads | 20× 25→5 km/h stops | Identical bed‑in process |
Brake Tech Glossary
Not sure what “bleed” or “ServoWave” really means? Tap each term below for a plain‑English definition
Hydraulic Disc Brake
A braking system that pushes fluid through a sealed hose to move the caliper pistons. Delivers strong, consistent power with minimal lever effort.
Mechanical Disc Brake
Uses a steel cable to pull the caliper arms. Easier to service on the road but needs more hand force and regular cable adjustments.
Rotor
The stainless‑steel disc attached to your wheel hub that the brake pads squeeze to slow you down.
Caliper
The component that houses pistons and pads. It clamps onto the rotor when you squeeze the brake lever.
Bleed
The process of removing air bubbles from a hydraulic brake line and refreshing the fluid to keep lever feel crisp.
ServoWave
Shimano lever cam mechanism that moves pads quickly at first, then increases leverage for fine modulation.
Pistons (2‑/4‑Piston)
Hydraulic cylinders inside the caliper. More pistons usually mean more power and heat management.
Mineral Oil
Shimano’s non‑corrosive brake fluid. Unlike DOT fluid, it doesn’t absorb moisture.
Bed‑In
A series of controlled stops that transfers pad material to the rotor for maximum bite and silence.
Olive & Barb
Small hardware pieces that seal a cut hydraulic hose to the brake lever or caliper.
Centerlock / 6‑Bolt
Two common standards for attaching rotors to hubs. Centerlock uses a spline and lockring; 6‑bolt uses six Torx bolts.
Flat‑Mount
A compact caliper mounting standard found on modern road and gravel frames.
ICE‑Tech Rotor
Shimano rotors with aluminum core and cooling fins to shed heat faster on long descents.

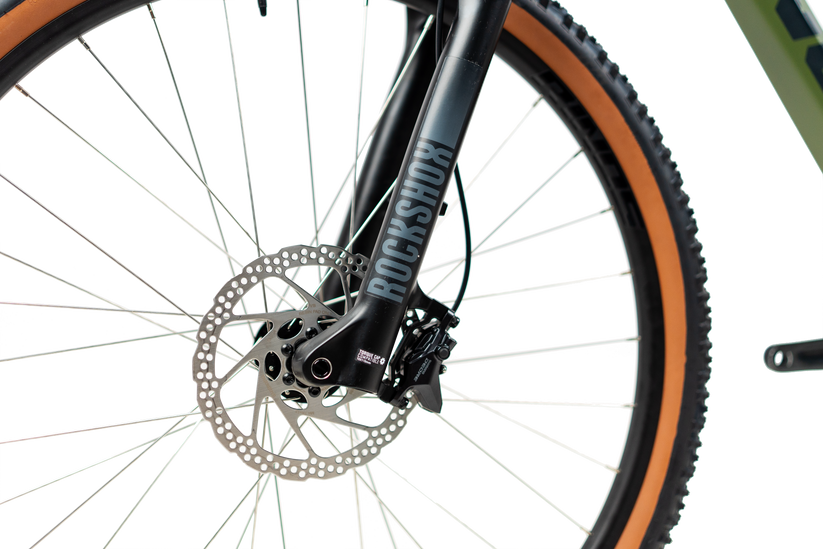

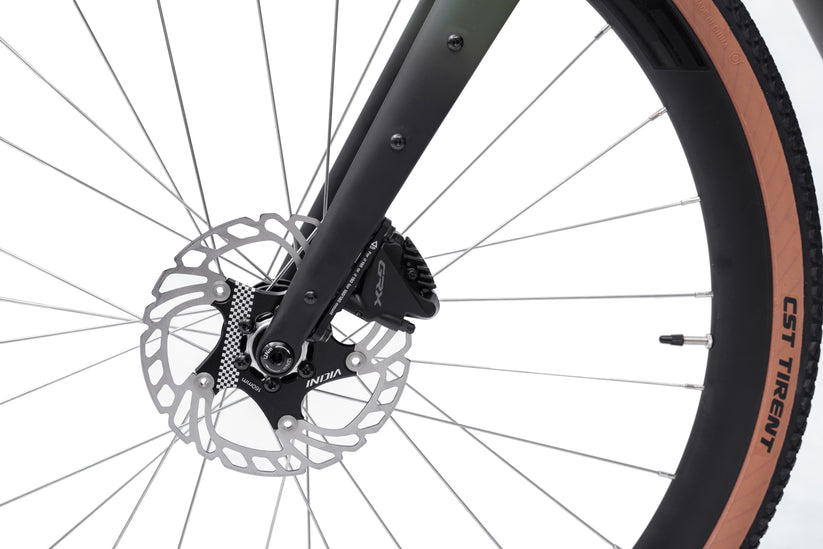

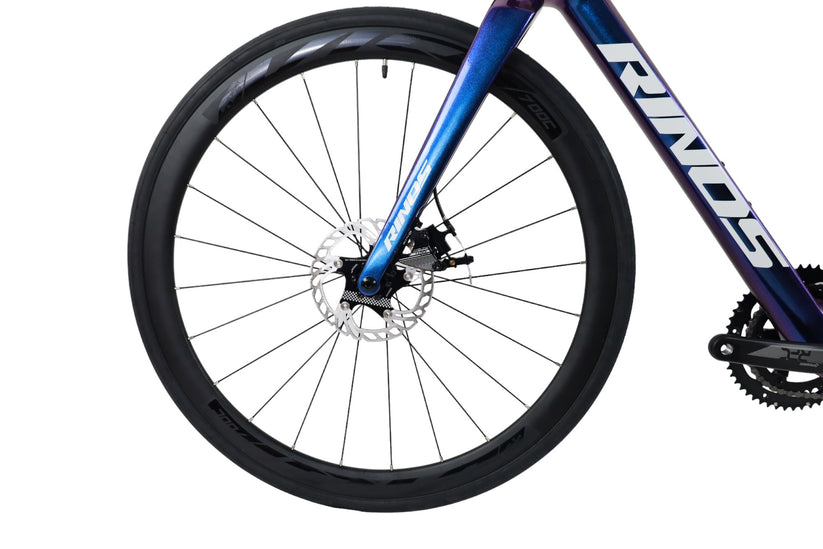

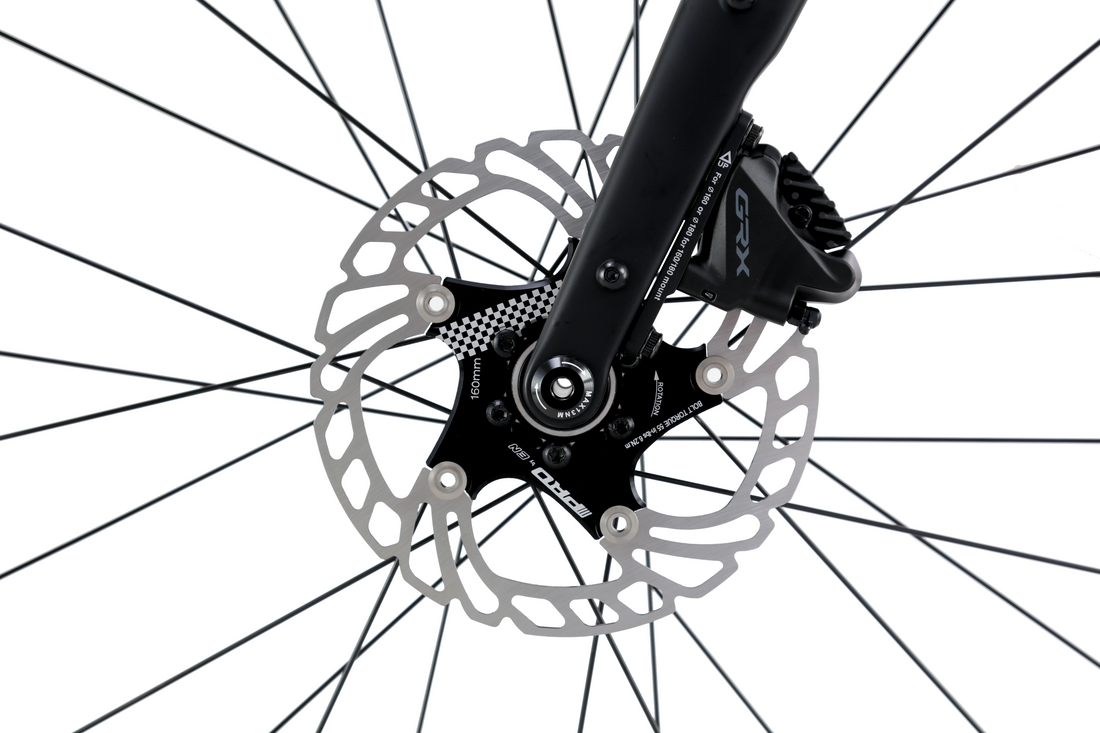

Real‑World Brake Close‑ups
Still Have Brake Questions?
Email our tech crew any time at info@rinosbike.eu – we answer everything from rotor sizing to Shimano mineral oil types.
