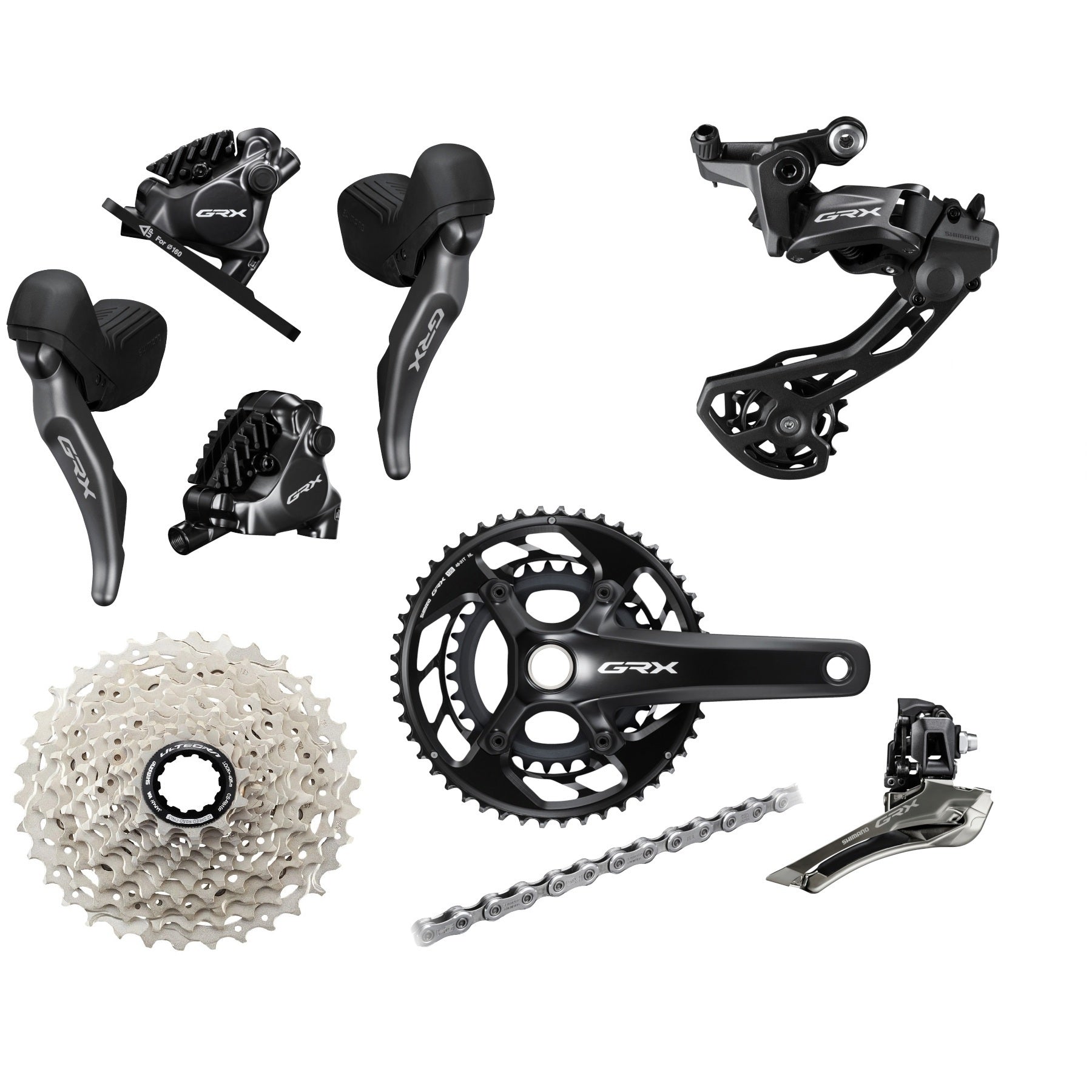

Shimano GRX RX820 2x12-Speed ??Gravel Groupset

The Shimano GRX RX820 groupset is specifically designed for gravel riding and offers a combination of precise shifting performance, reliable braking power, and robust construction. This group includes the key components for a 2x12-speed drivetrain, ideally suited for a wide variety of terrain. Components Included: Shift/Brake Levers: Shimano GRX ST-RX820 (left + right) Brake System: Shimano GRX BR-RX820 disc brake calipers (front + rear) Crankset: Shimano GRX FC-RX820-12 with 48/31 teeth Hollowtech II, 172.5mm Front Derailleur: Shimano GRX FD-RX820 Rear Derailleur: Shimano GRX RD-RX820

Note: Brake rotors and bottom bracket are not included but can be purchased separately.

Key Features of Individual Components

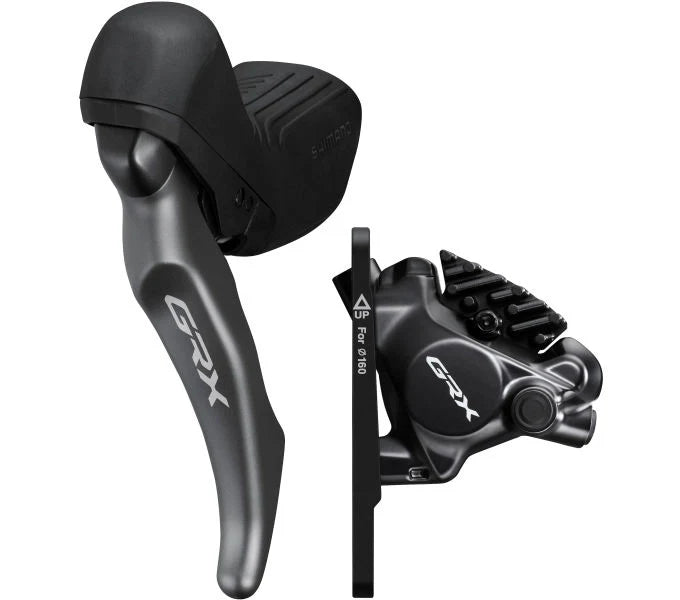

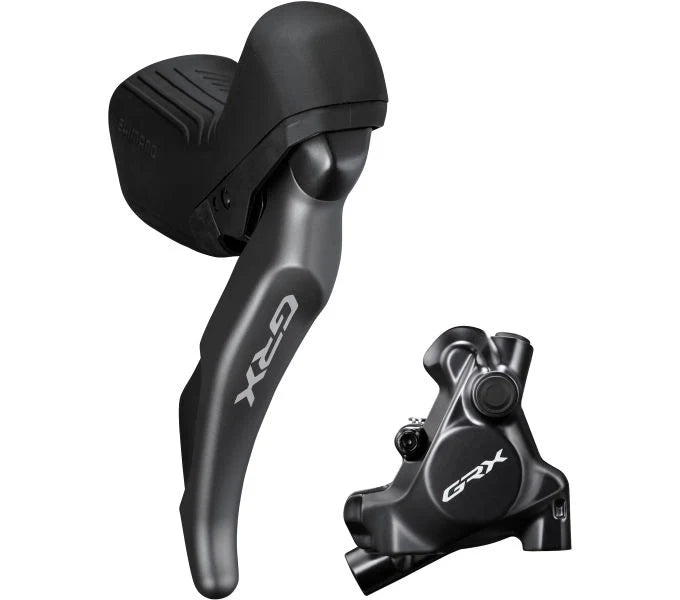

Shimano GRX ST-RX820 Shift & Brake Levers

The ergonomically shaped shift and brake levers offer comfortable handling for various handlebar shapes. Thanks to the non-slip coating, the grip remains secure even in changing conditions. Furthermore, the raised pivot point provides improved brake control, while the reach can be individually adjusted.

Shimano GRX BR-RX820 Disc Brake Caliper

The hydraulic disc brake caliper guarantees consistent braking performance on challenging terrain. Ice Tech technology efficiently dissipates heat, resulting in better braking performance. The Flat Mount attachment ensures compact integration on the frame or fork.

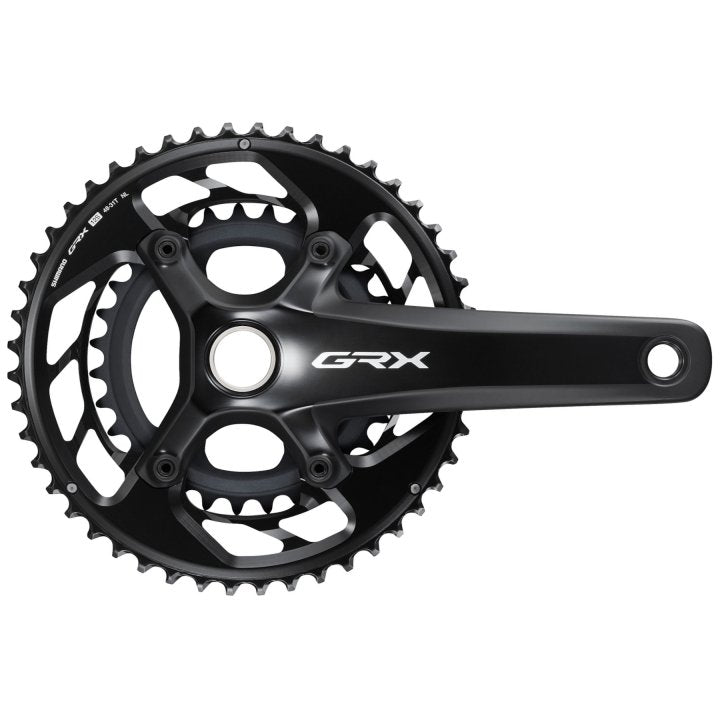

Shimano GRX FC-RX820-12 Crankset

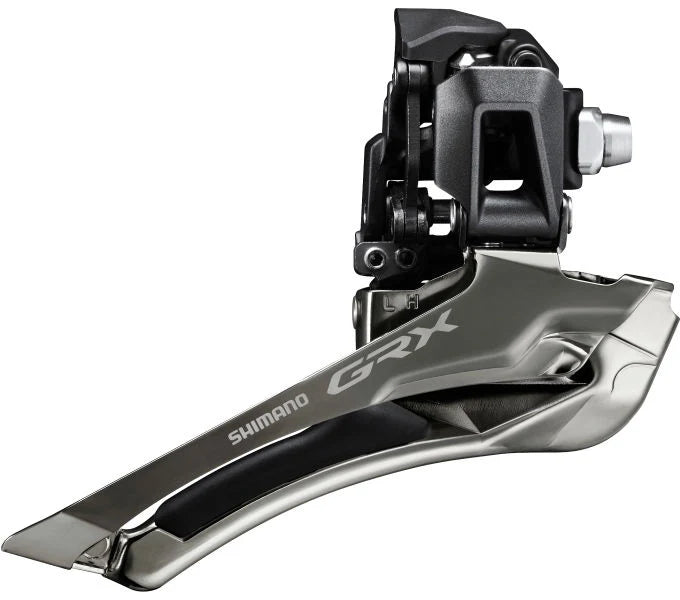

This 2x12-speed crankset features an optimized chainline that provides more clearance for wider tires. The combination of 48 and 31 teeth provides a versatile gear range for various types of terrain. The 4-arm design of the aluminum chainrings is compatible with Shimano HG 12-speed chains. Shimano GRX FD-RX820 Front Derailleur With a 16-tooth capacity, the FD-RX820 harmonizes perfectly with the FC-RX820 crankset. Thanks to the extended chainline of the GRX series, wider tires can also be used without any problems. Its precise and smooth shifting mechanism ensures a natural shifting feel. Shimano GRX RD-RX820 Rear Derailleur This rear derailleur was specifically designed for gravel riding. The Shadow RD+ system minimizes chain slap and ensures stable, quiet shifting, even on rough terrain. An additional on/off switch locks the derailleur cage and reduces unwanted movement. Compatible with cassettes from 11-32 to 11-36 teeth.

Compatibility & Technical Details

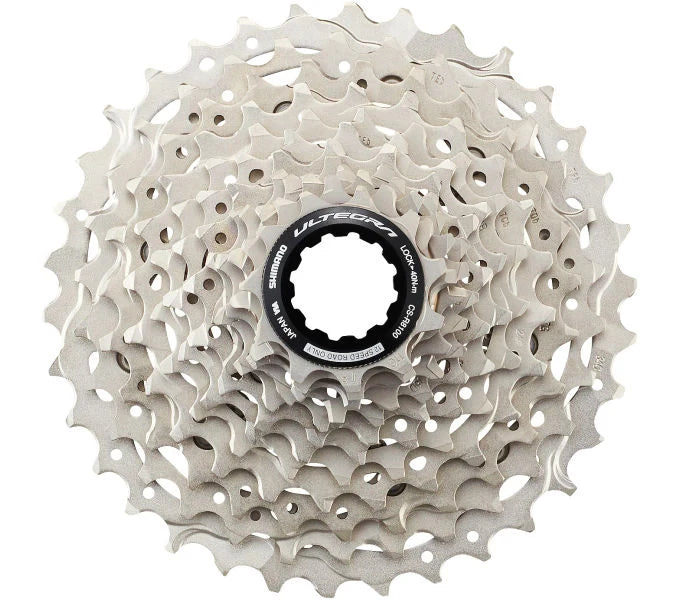

• Rear derailleur: Only compatible with Shimano CS-R8100 cassettes (11-32 or 11-34 teeth)
• Mounting: Flat mount for brake caliper, standard mount for front derailleur & Rear derailleur Crankset: 2.5 mm wider than standard for increased tire clearance Chain compatibility: HG 12-speed chains Shimano SKU numbers Shifter/brake levers: IRX8202DLF6SC100A + IRX8202DRRDSC170A Crankset: IFCRX8202DX81 Front derailleur: IFDRX820F Rear derailleur: IRDRX820 Cassette: ICSR810112134

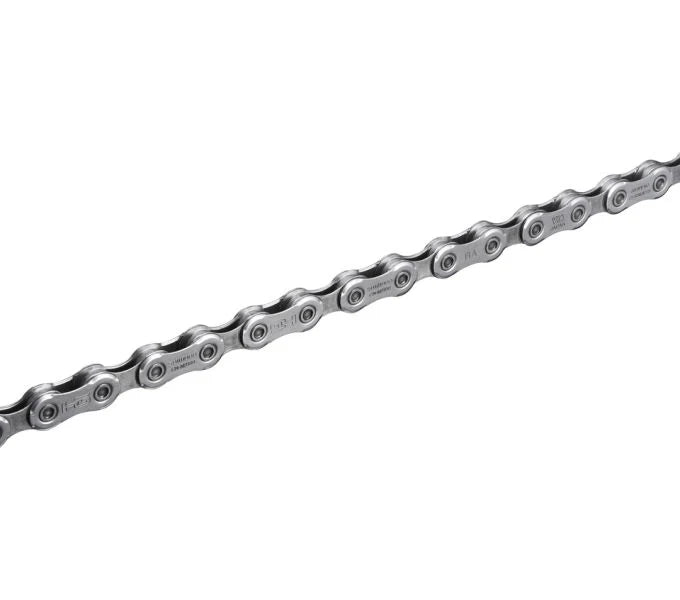

• Chain: ICNM8100126Q

Scope of delivery: Shimano GRX400 groupset without brake discs and bottom bracket.
