Precision. Performance. Proven Reliability.

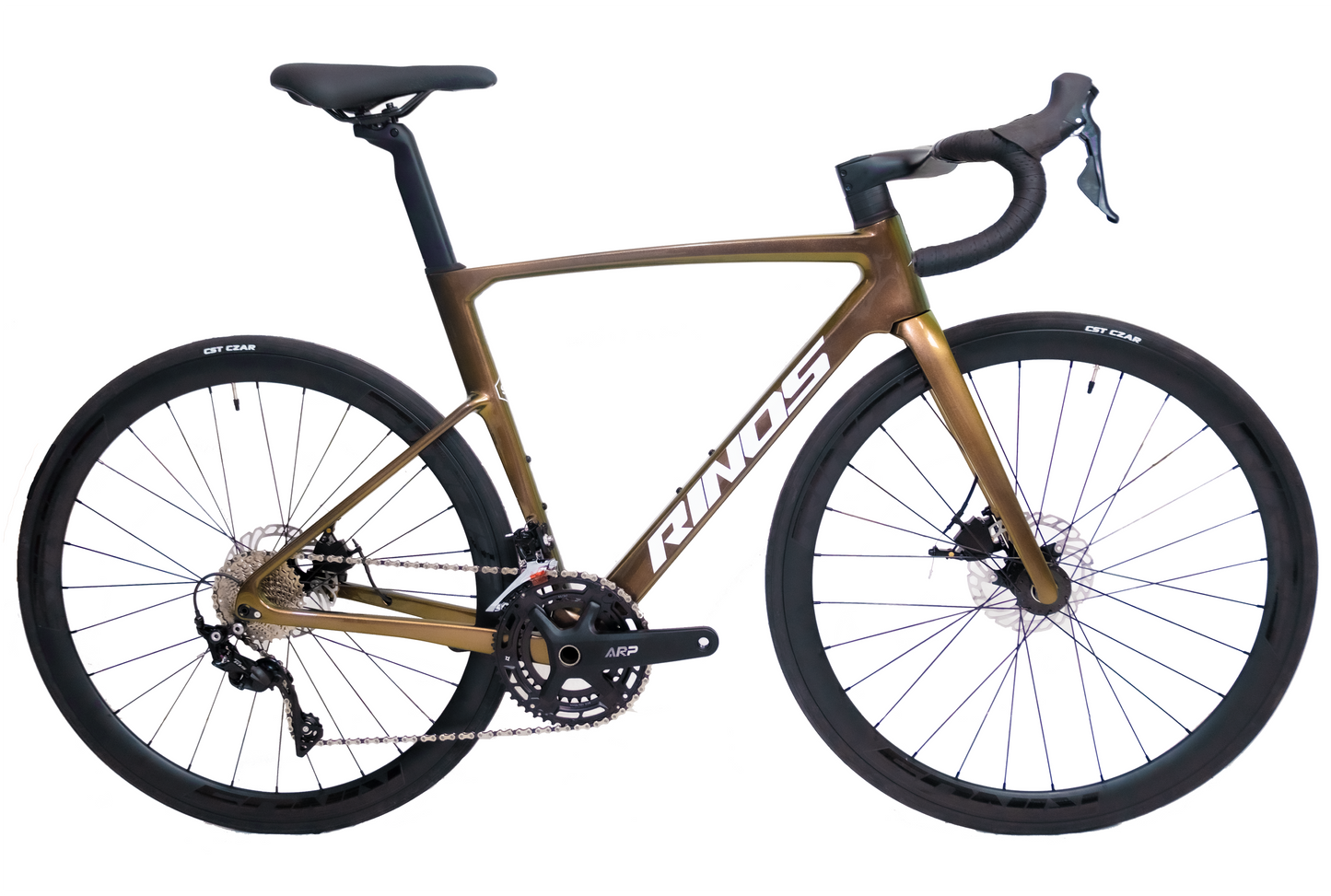

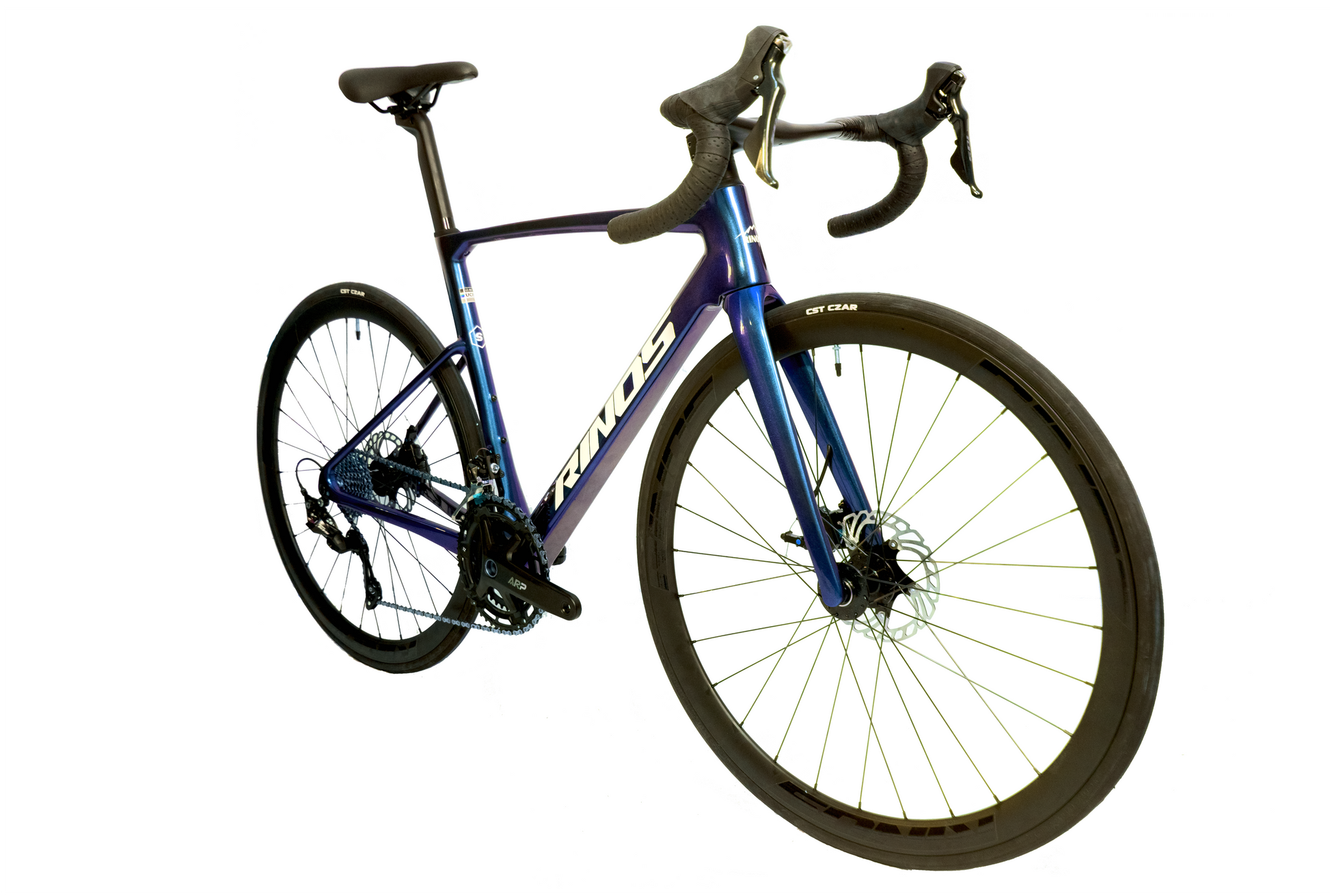

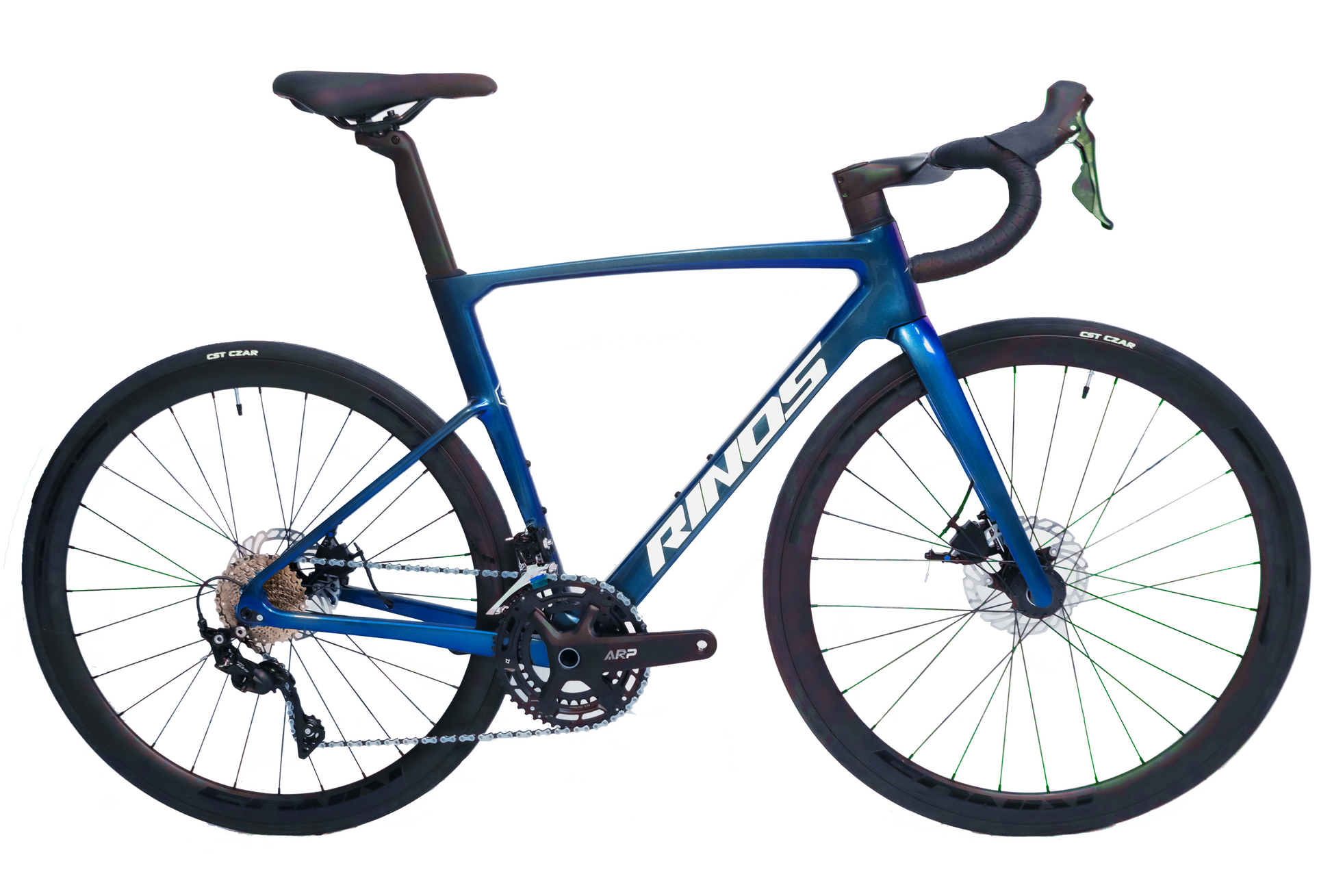

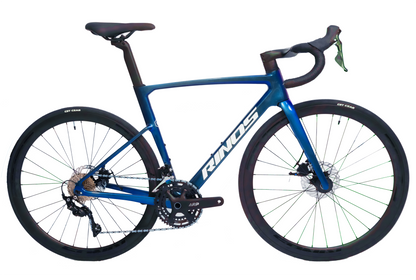

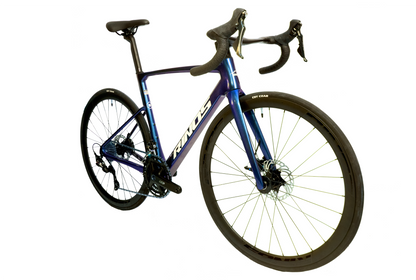

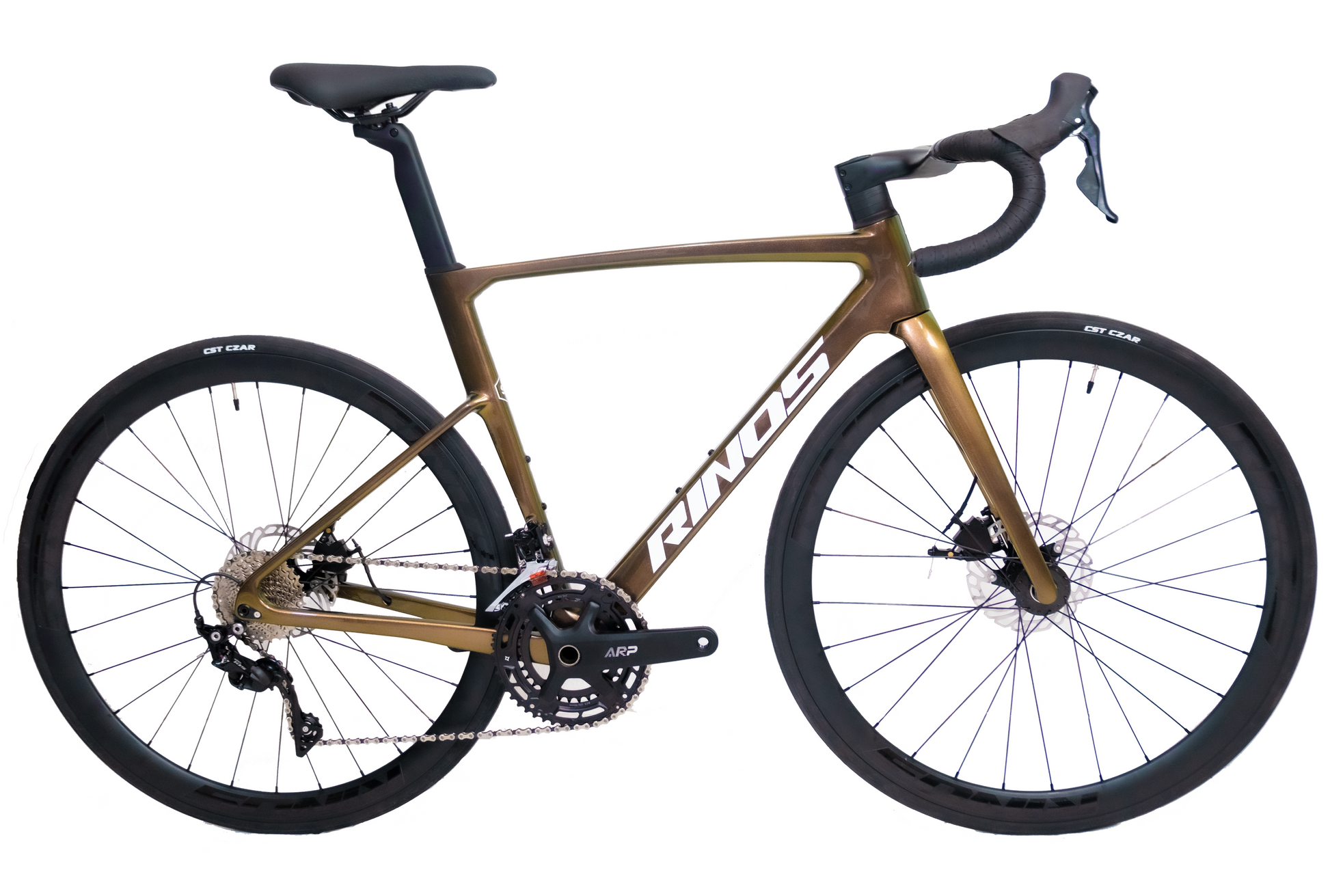

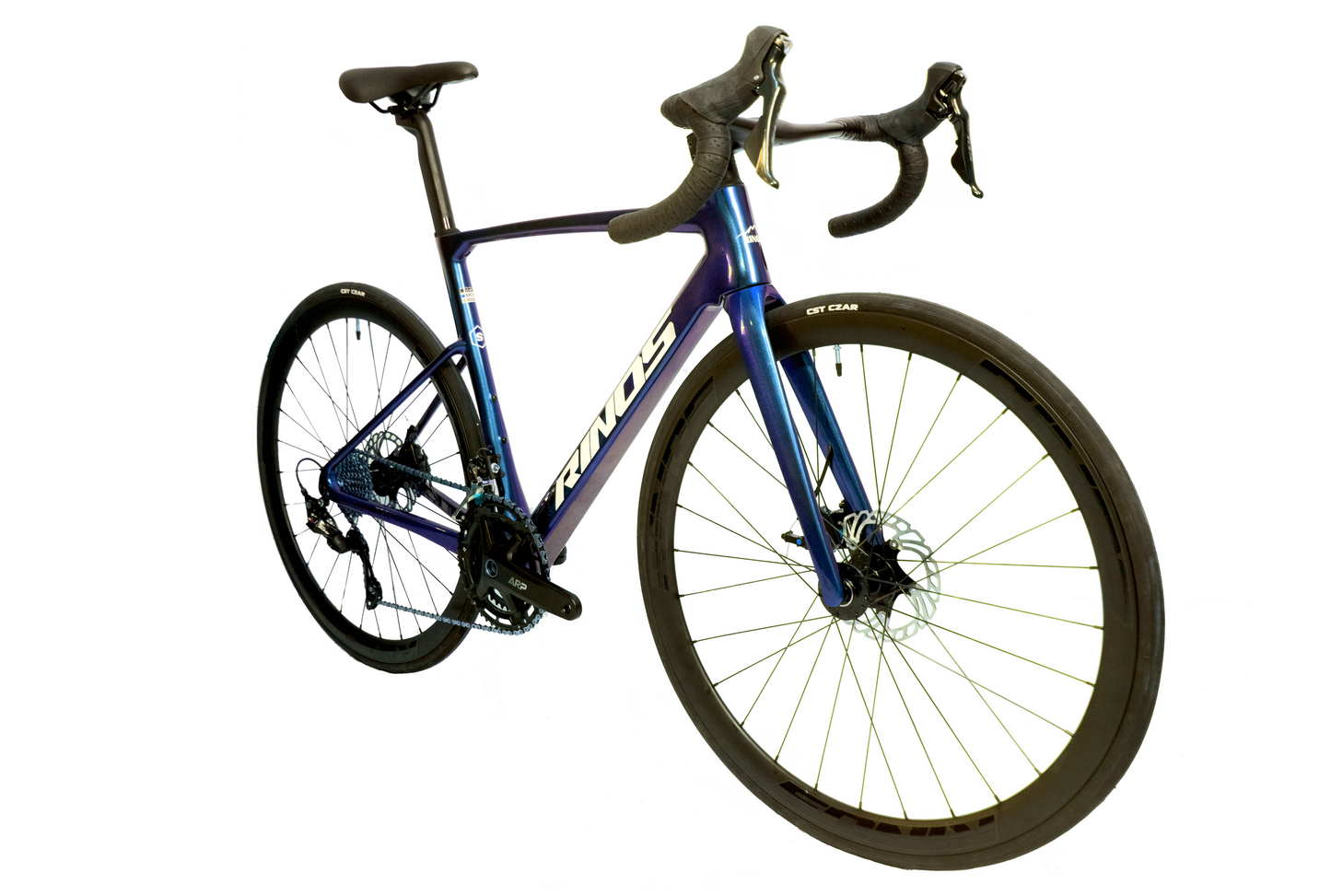

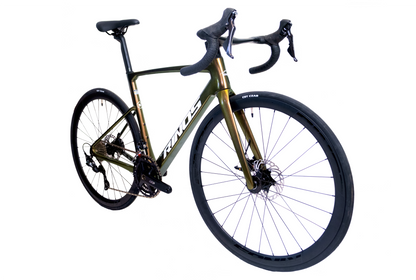

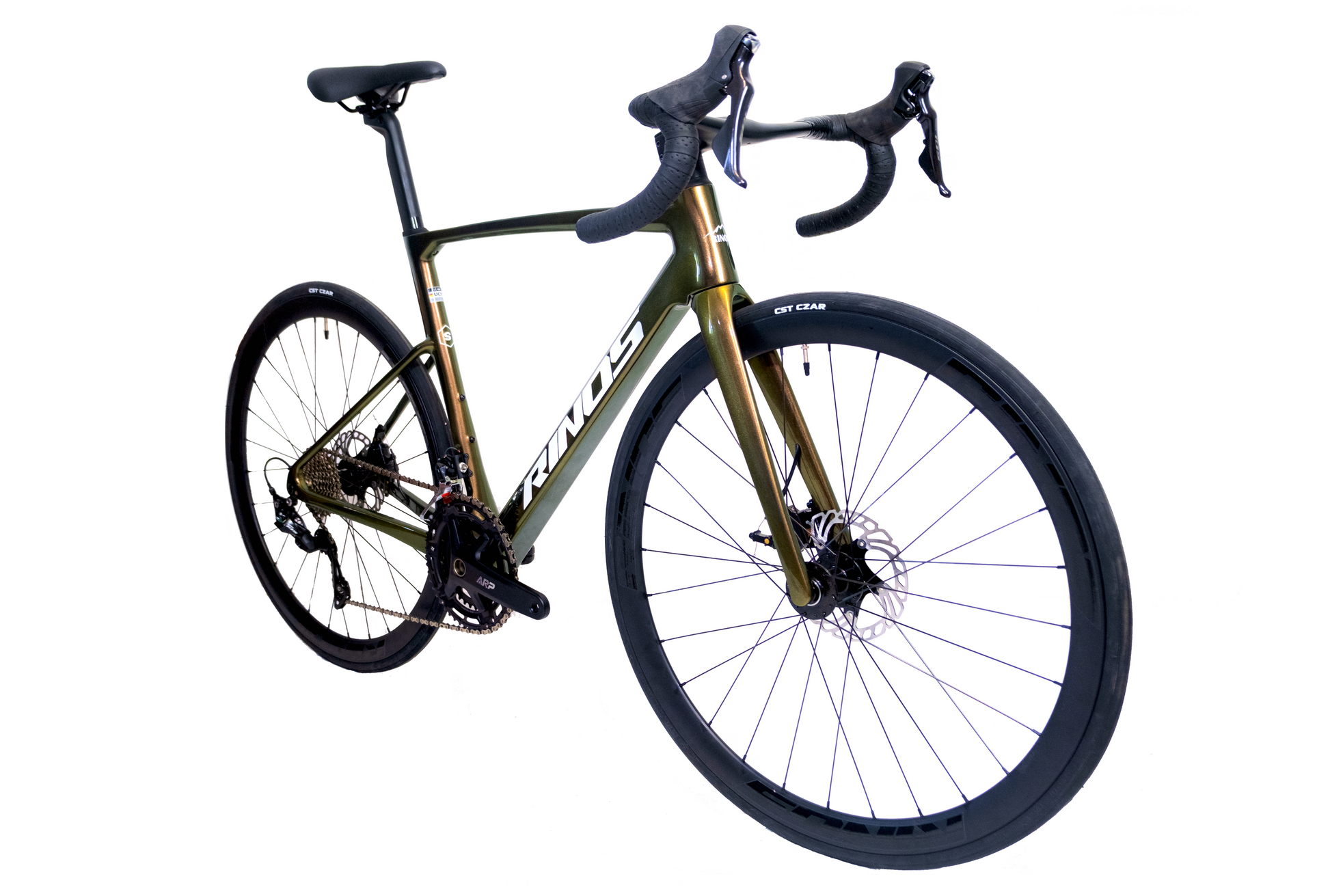

The RINOS Odin 3 is built for serious riders who want Shimano 105 R7000 2×11 shifting, confident disc braking and a UCI-certified Toray T800 carbon frame. At just 8.8 kg with carbon frame, fork and seatpost, it’s ready for club rides, centuries and your first races.

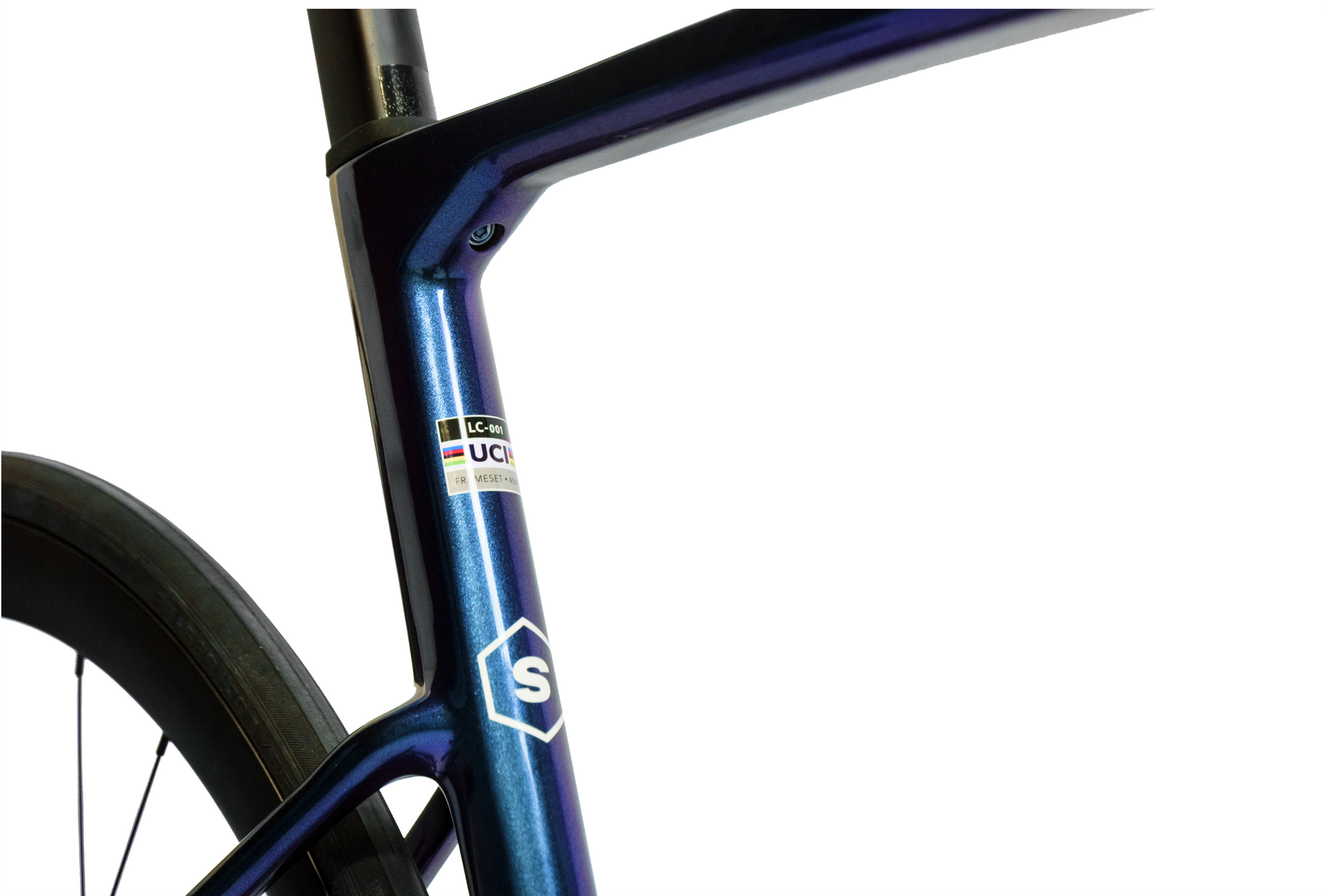

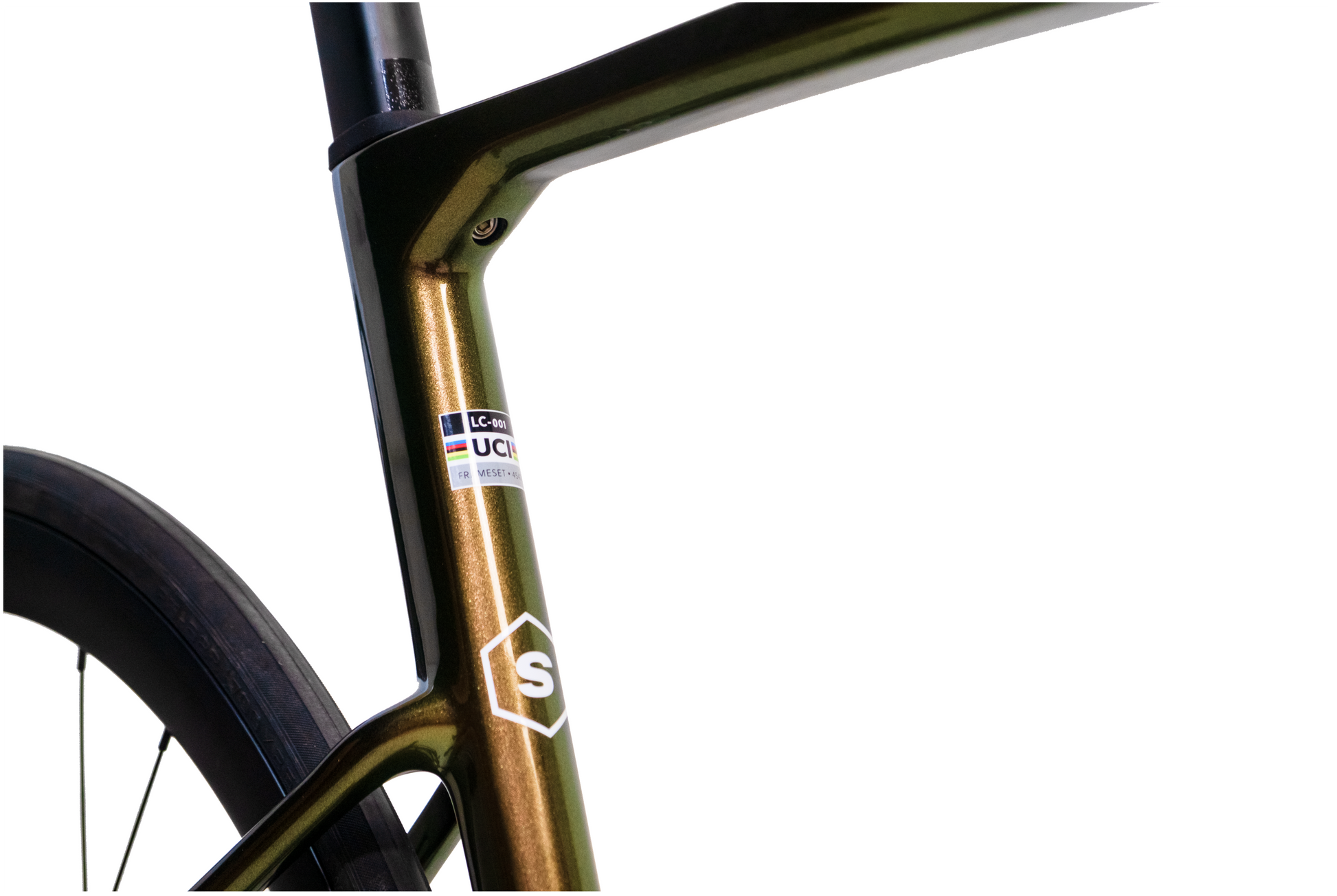

The Odin 3 uses a UCI-certified Toray T800 carbon frame that meets strict international frame standards. Combined with a matching carbon fork and seatpost, it offers stiffness for power transfer and compliance to smooth out rough roads.

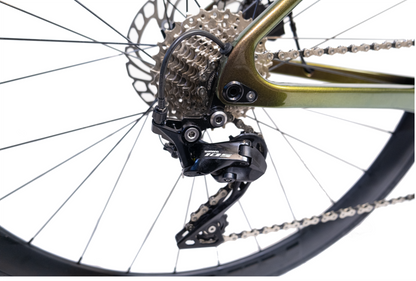

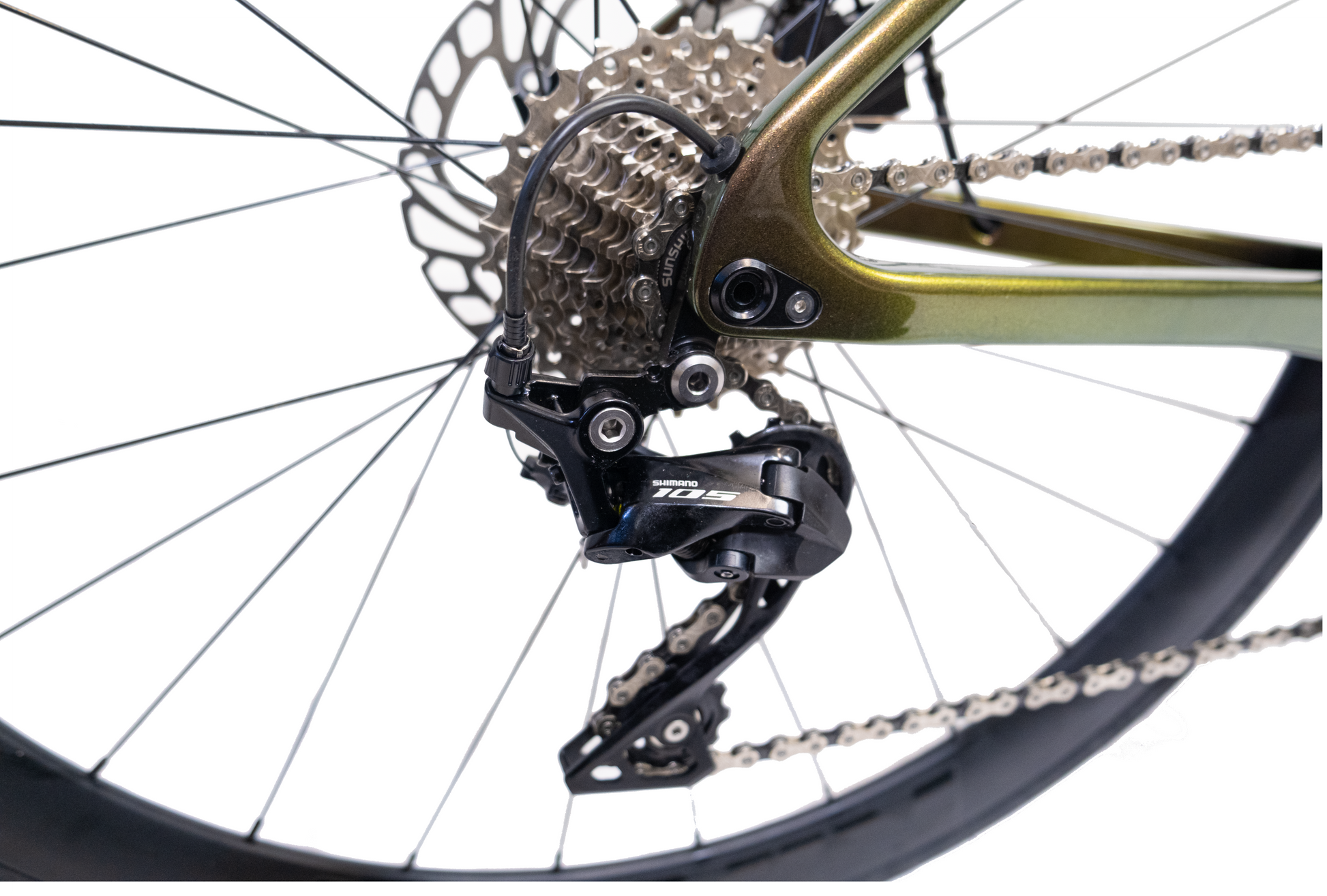

Crisp 2×11-speed shifting, proven durability and excellent modulation. Shimano 105 sits in the sweet spot between race performance and everyday reliability – trusted by club riders and weekend racers worldwide.
Toray T800 carbon frame, fork and seatpost are engineered to be stiff where you need power, and compliant where you need comfort. It’s the same carbon grade you’ll find on bikes often costing significantly more.

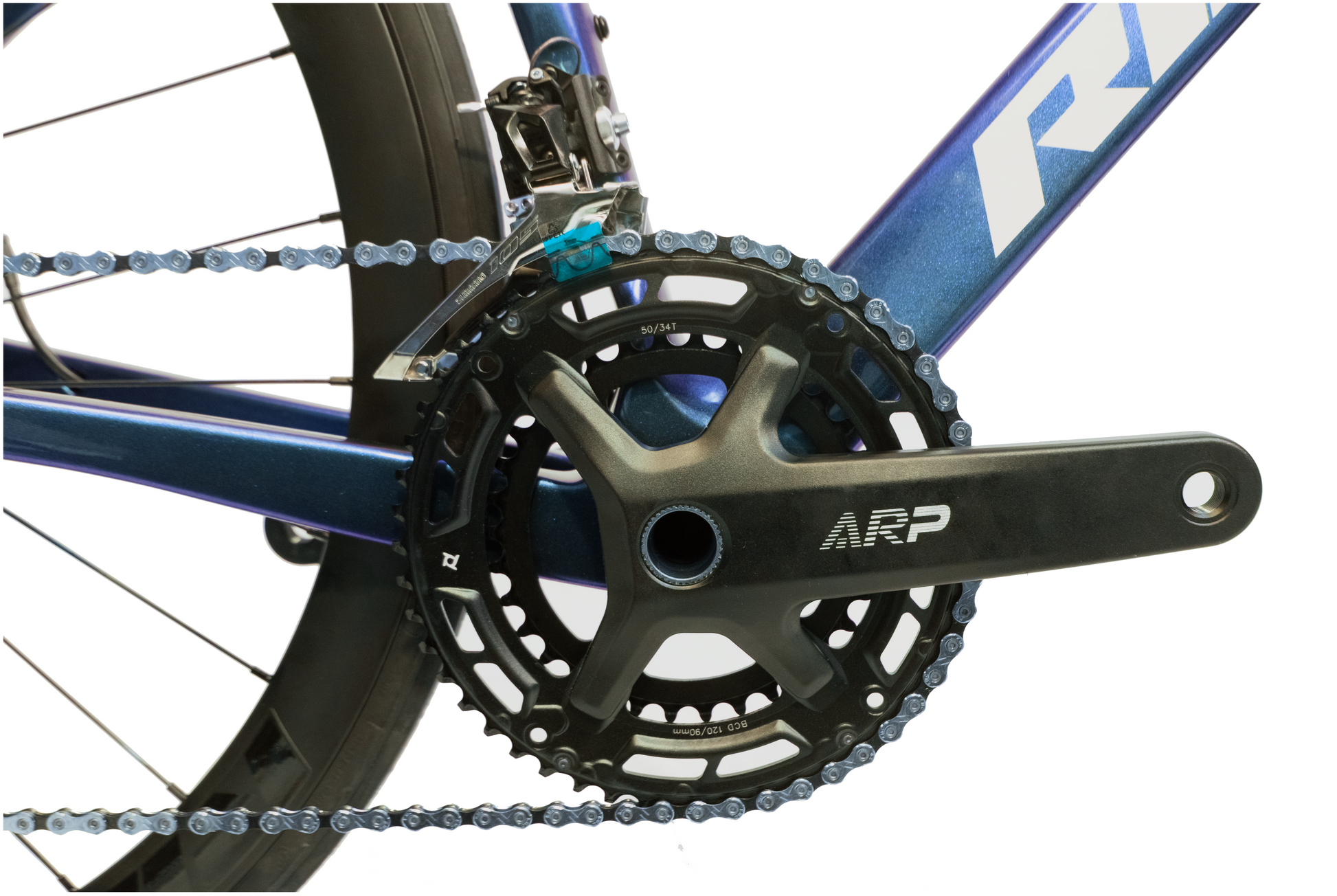

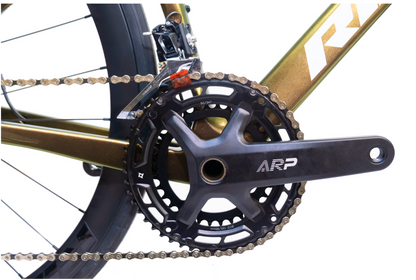

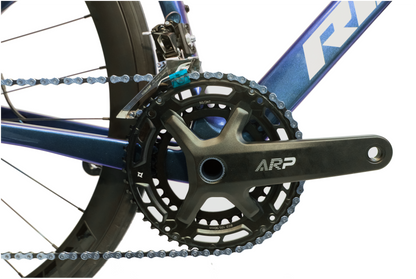

With disc brakes, aerodynamic 40 mm high-profile rims and a compact 50/34T crankset, Odin 3 delivers a balanced setup for climbing, sprinting and stable descending.

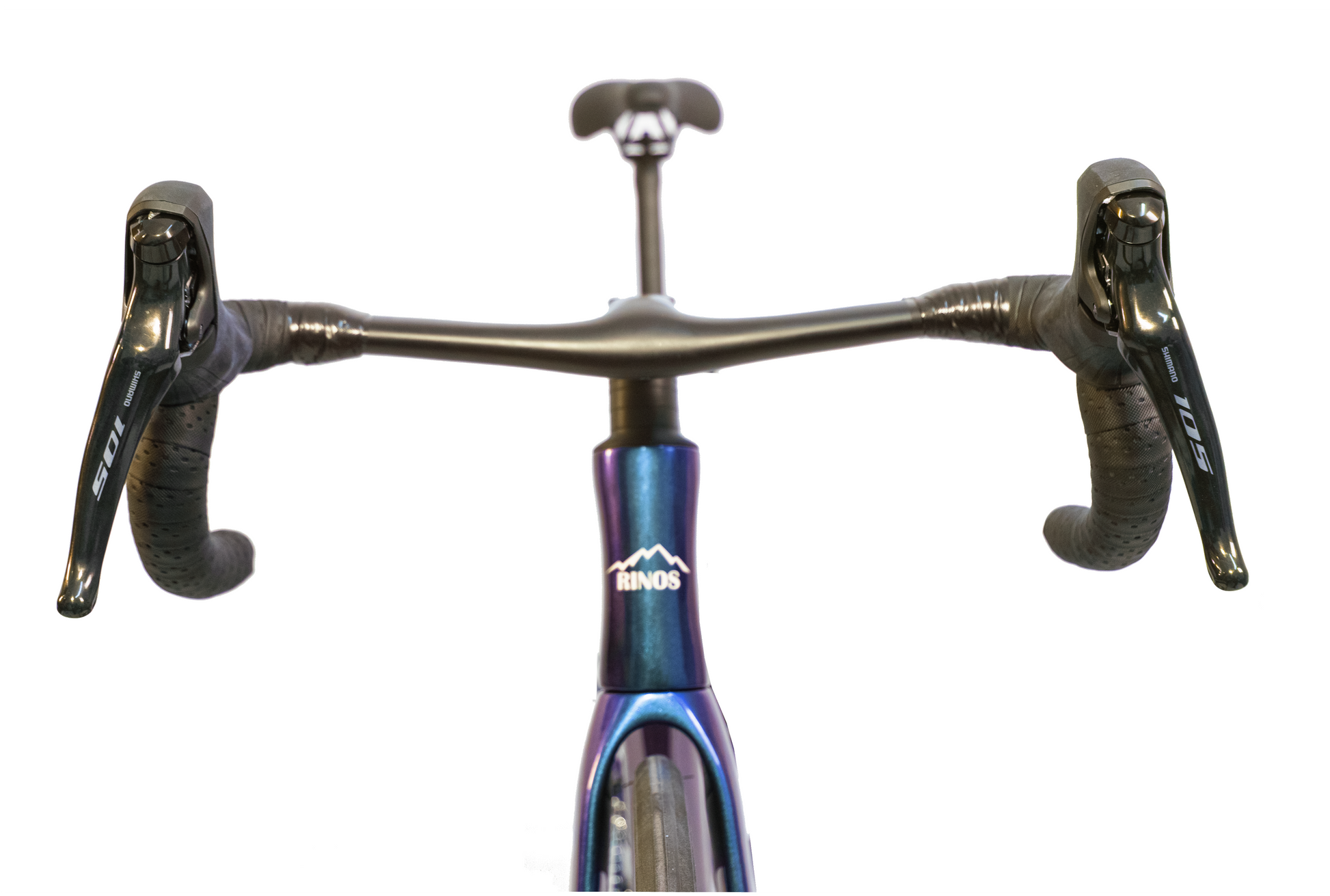

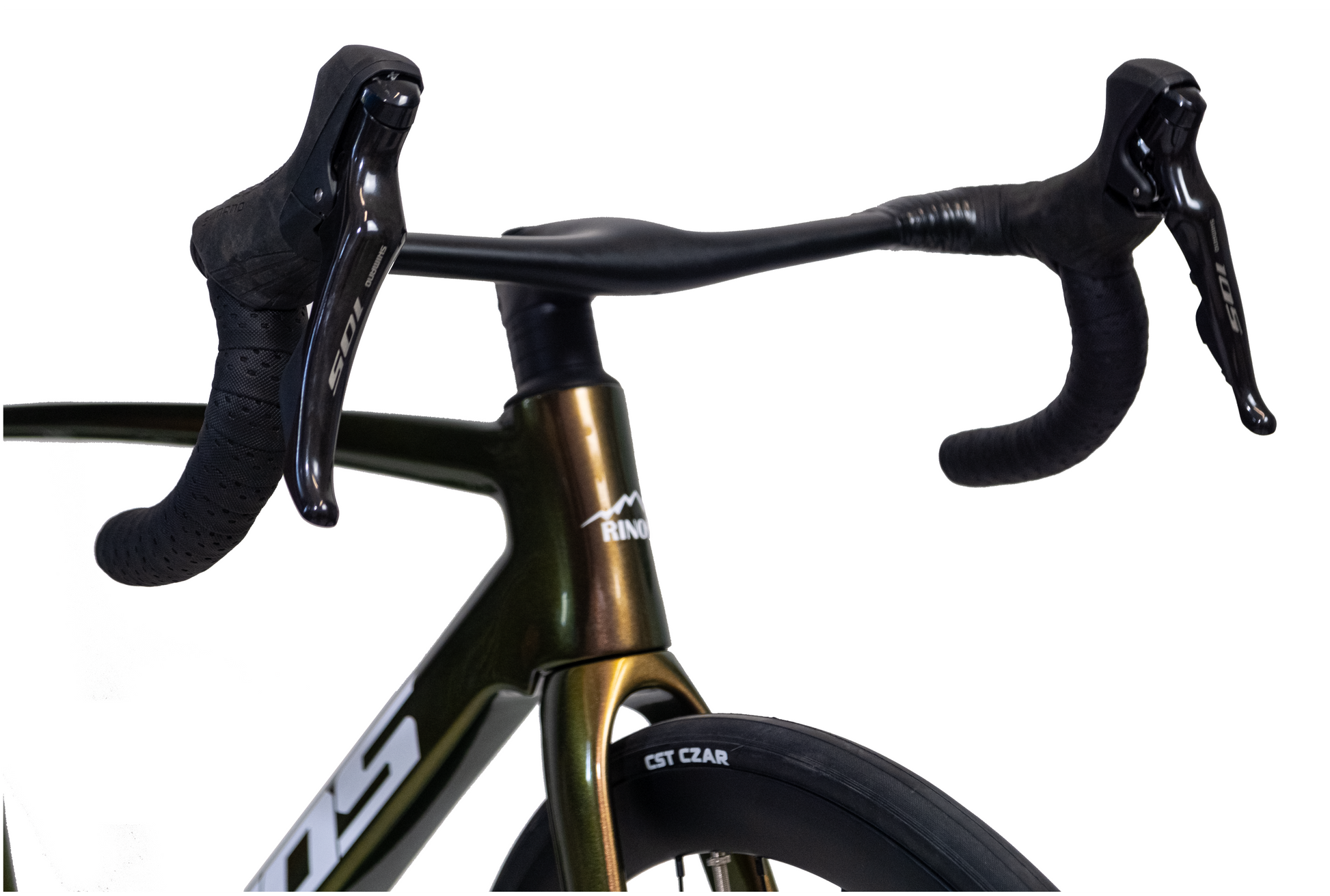

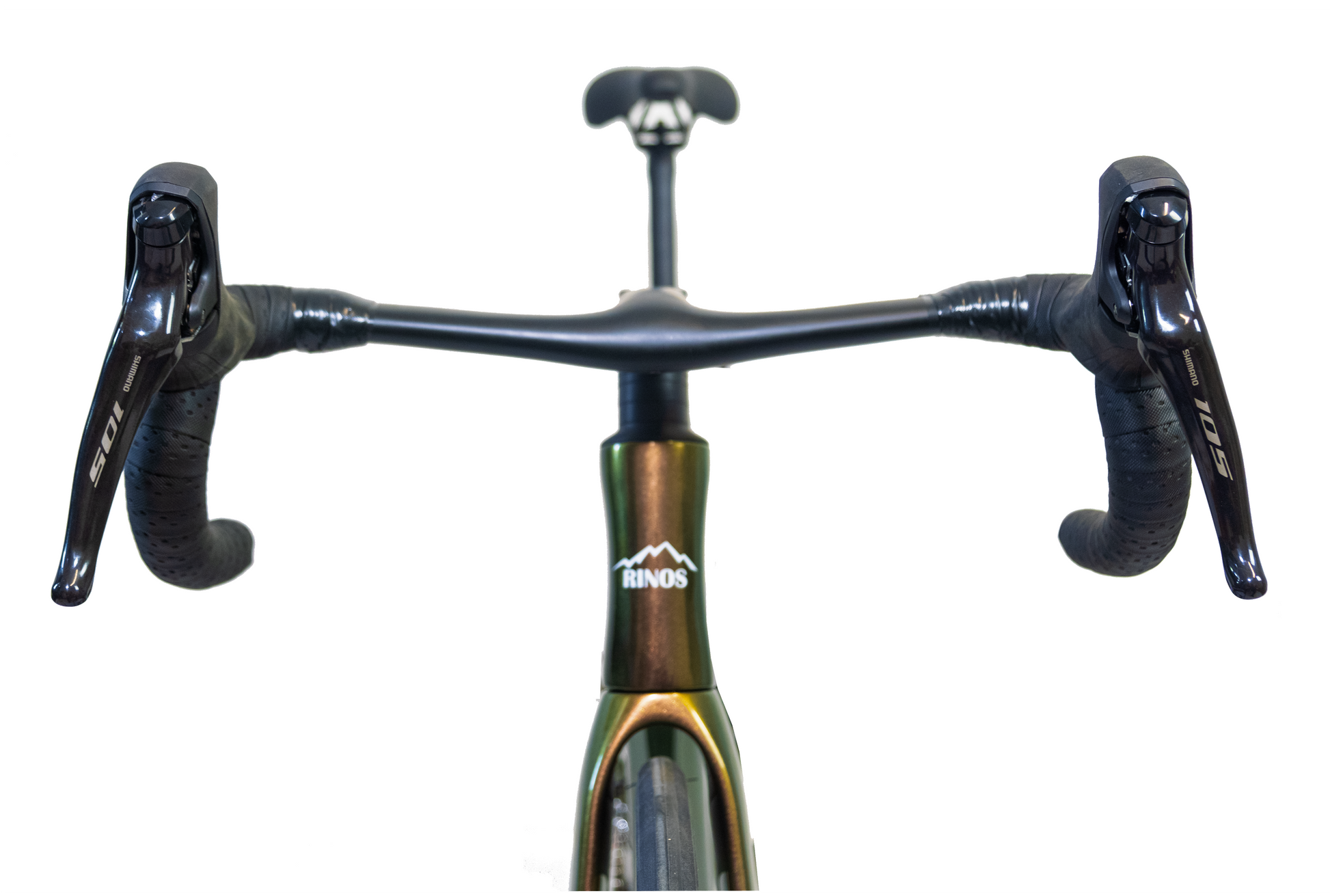

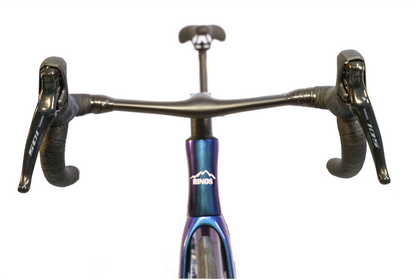

Flattened aero handlebar, internal cable routing and deep-section wheels provide efficient aerodynamics and a clean, professional look that stands out on the road.
No dealer markups. You get a UCI-certified carbon frame, Shimano 105 groupset and disc brakes at an honest, rider-focused price.
Available in XS, S, M, L, XL, covering riders from 156 cm to 200 cm.
| Frame Size | Recommended Rider Height |
|---|---|
| XS | 156–165 cm |
| S | 166–174 cm |
| M | 175–184 cm |
| L | 185–193 cm |
| XL | 194–200 cm |
Not sure which size to choose? Contact us with your height and inseam and we’ll help you pick the perfect size. If the size doesn’t fit, we offer easy exchanges.
| Model: | Odin3.0 |
| Manufacturer: | Rinos |
| Colour: | Gold/Blue |
| Wheel size: | 28 inch (700c) |
| Frame size: | XS/S/M/L/XL |
| User height for XS: | 156–165 cm |
| User height for S: | 166–174 cm |
| User height for M: | 175–184 cm |
| User height for L: | 185–193 cm |
| User height for XL: | 194–200 cm |
| Product weight: | 8.8 kg |
| Shipping weight: | 13.8 kg |
| Frame: | Rinos, Toray T800 Carbon (UCI-certified frame) |
| Fork: | Rinos, Toray T800 Carbon |
| Handlebar: | Rinos, Carbon, 400–420 × 28.6 mm |
| Headset: | Rinos, Aluminium, 1-1/2" 28.6 × 52 × 52 × 28.6 mm |
| Seatpost: | Rinos, 380 mm Carbon |
| Saddle: | Rinos |
| Gearing: | Shimano 105 ST-R7000, 22 speed (2×11) |

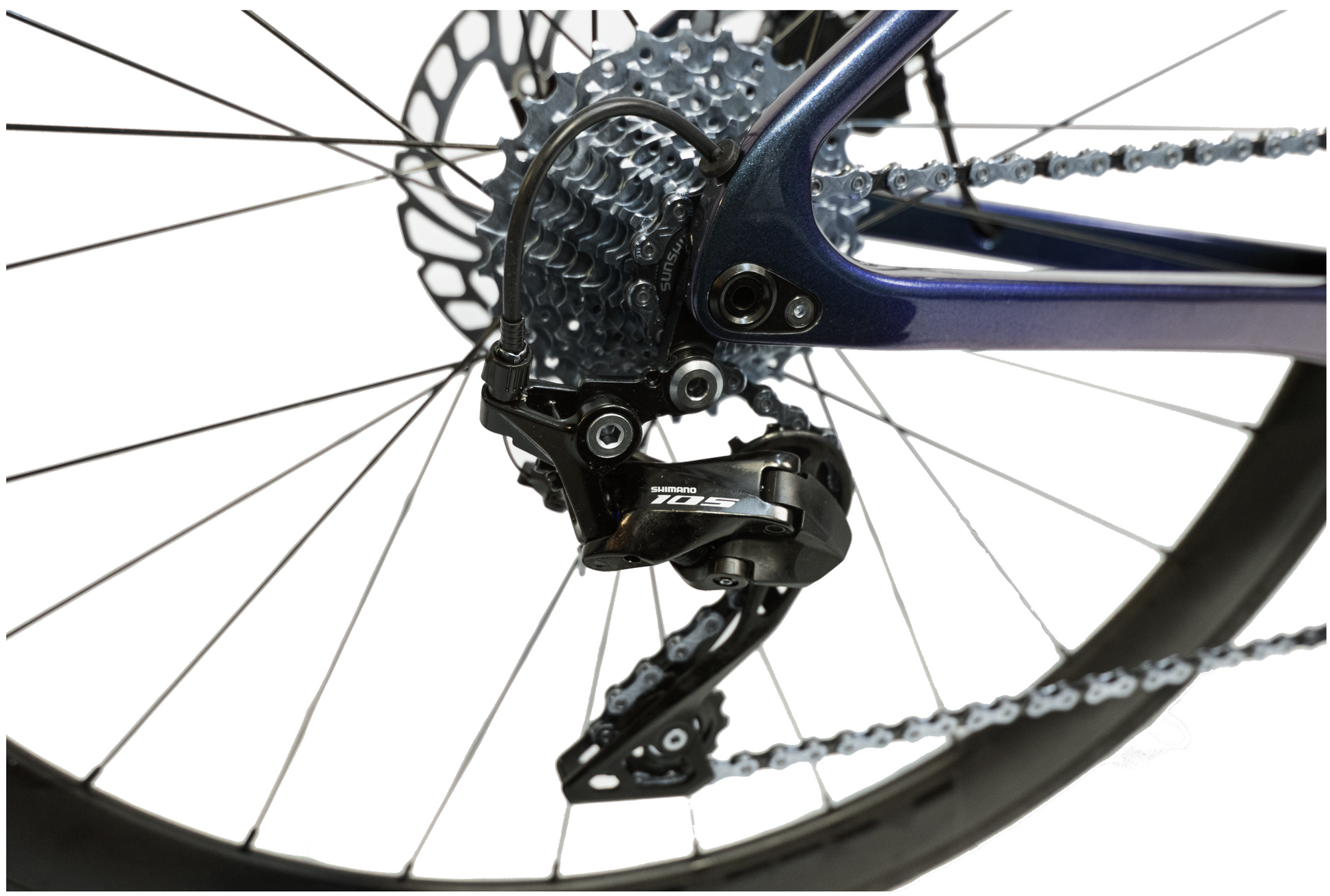

| Derailleur: | Shimano 105 R7000 |
| Brakes: | Disc brakes |
| Cassette: | 11–30T |

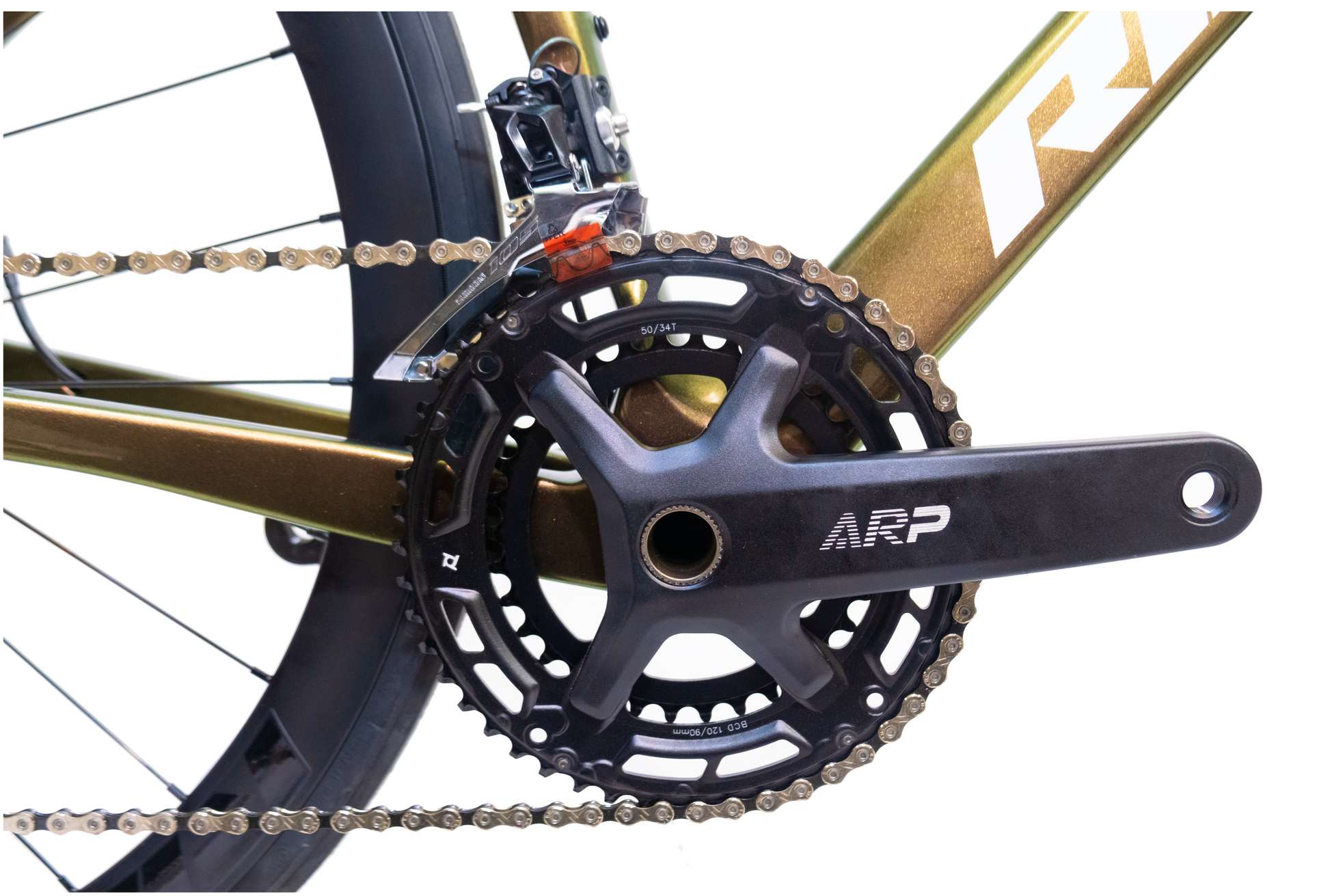

| Crankset: | 50/34T × 170, 11-speed compatible |
| Chain: | KMC |
| Pedals: | — |
| Wheels: | Rinos, 28" 700C × 28H × 14G, 38 mm |
| Rims: | Aluminium 700C × 14G × 28H F/V, 14 × 38 mm |
| Hub: | Novatec 28H × 14G |
| Tyres: | CST 700 × 25C |
| Accessories: | Tools, operating instructions |
| Size | A | B | C | D | E | F | G | H | I | J | K | WB | FL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 420 | 511 | - | - | 74.5° | 70° | 588 | 110 | - | 362 | 537 | 1002 | - |
| S | 450 | 522 | - | - | 75.25° | 70.75° | 591 | 130 | - | 364 | 560 | 1005 | - |
| M | 480 | 539 | -75 | 425 | 74° | 71° | 604 | 150 | 50 | 373 | 579 | 1018 | 400 |
| L | 500 | 556 | - | - | 73.75° | 71.25° | 616 | 170 | - | 381 | 600 | 1030 | - |
| XL | 520 | 573 | - | - | 72.5° | 71.25° | 631 | 190 | - | 389 | 620 | 1045 | - |
All measurements in millimeters (mm). Angles in degrees (°). Missing values indicate shared or equivalent dimensions.
Shimano 105 offers smoother shifting, a wider gear range and higher durability compared to Sora. It’s the groupset many club riders trust for 100 km+ days and mixed terrain.
Odin 3 uses mechanical disc brakes and aluminium rims – delivering excellent performance at an accessible price. Higher models may add hydraulic brakes, carbon wheels or Ultegra-level components for even more performance.
Yes. The carbon construction helps absorb road vibrations, the compact 50/34T crankset supports climbing, and the 11–30T cassette offers a broad range for varied terrain – ideal for sportives and long rides.
Most EU orders ship within 2–3 business days and arrive within 5–7 days, depending on your country.
2-year coverage on carbon frame, fork and seatpost for manufacturing defects. Normal wear parts (tyres, brake pads, cables, chain) are excluded.
Installation guide:
